SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Liner


03 - Door


04 - Unit


05 - Shelf, Optional

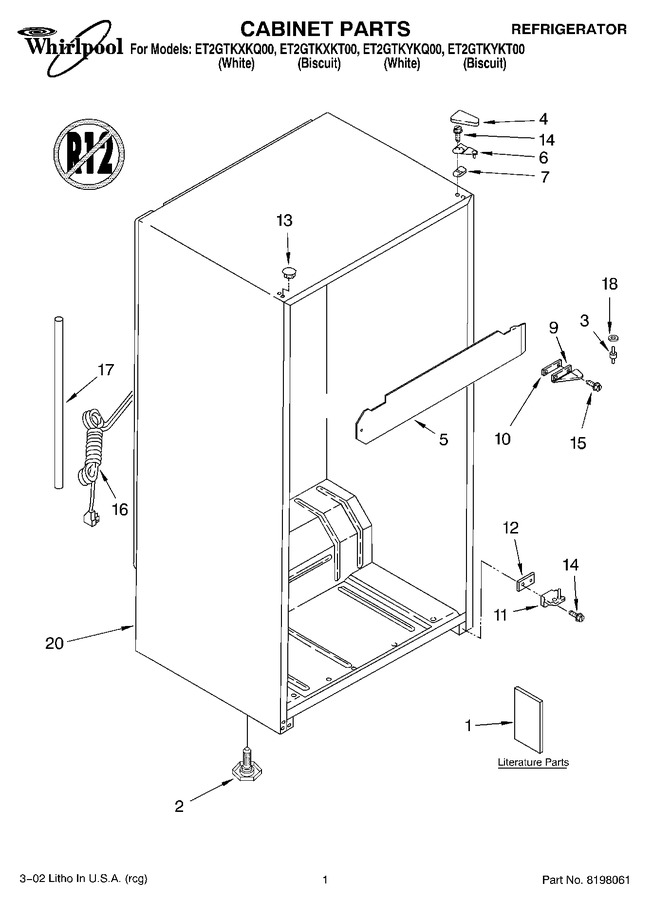

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT4356798		Literature Parts (owner`s Manual)		Appelez-nous	-
1	LIT4356799		Literature Parts (energy Label)		Appelez-nous	-
2	W11117769		Leveler   (Replaces: 4390567)			Immediately	$ 16.61
3	4390544		Pin, Center Hinge				$ 11.34
4	4390826		Hinge Cover (biscuit)		Appelez-nous	-
4	4357279		Hinge Cover (white)				$ 46.56
5	4390723		Center Rail		Appelez-nous	-
6	4390673		Hinge, Top (white)		Appelez-nous	-
6	4390825		Hinge, Top (biscuit)		Appelez-nous	-
7	4390489		Shim, Hinge Top				$ 6.26
9	4390828		Center Hinge (biscuit)		Appelez-nous	-
9	4390732		Center Hinge (white)		Appelez-nous	-
10	4390646		Shim, Center Hinge		Appelez-nous	-
11	4390829		Bottom Hinge (biscuit)		Appelez-nous	-
11	4390733		Bottom Hinge (white)				$ 14.55
12	4390497		Shim, Bottom Hinge		Appelez-nous	-
13	4390830		Hole Plug (biscuit)		Appelez-nous	-
13	4390836		Hole Plug (white)		Appelez-nous	-
14	WP999367		Screw   (Replaces: 4390496)				$ 7.07
15	WP999367		Screw   (Replaces: 4390492)				$ 7.07
16	4390591		Cord, Service		Appelez-nous	-
17	4390648		Tube Insulation, Heat Exchanger		Appelez-nous	-
18	4390623		Washer, Door Adjust		Appelez-nous	-
20	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
