View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet, Literature
02 - Liner
03 - Door
04 - Unit

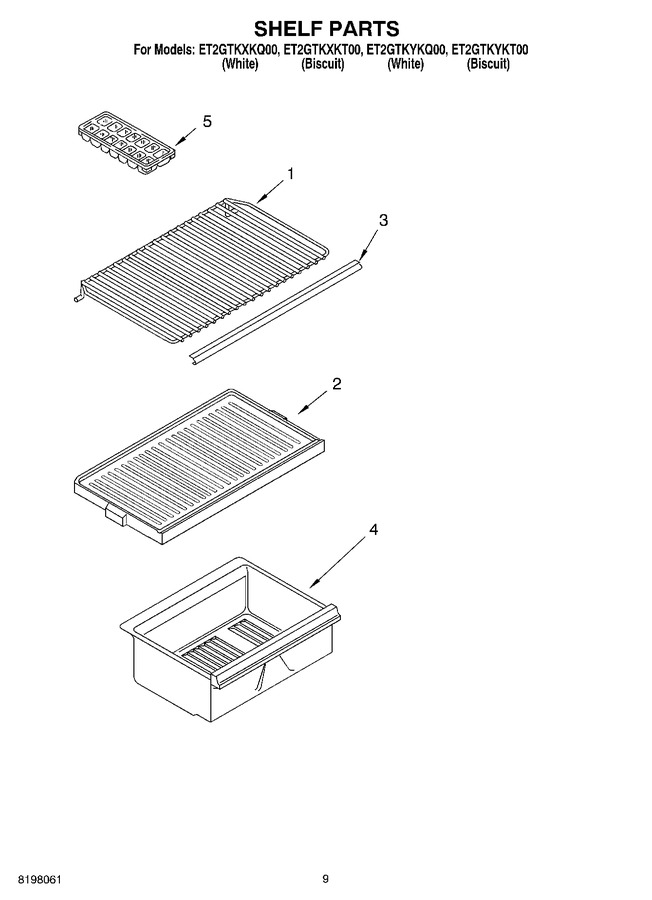

05 - Shelf, Optional
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4390728 | Shelf, Wire (2) |
|
- | |||||
| 2 | 4390472 | Cover, Crisper |
|
- | |||||
| 3 | 4390729 | Trim, Shelf (2) |
|
- | |||||
| 4 | 4390835 | Pan, Crisper |
|
- | |||||
| 5 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | ||||
| 5 | 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | |||||
| 5 | WP841180A | Ice Cube Tray (Replaces: 4390558) |
|
Immediately | $ 41.00 | ||||
| 5 | 350942 | Primer White (13 Oz. Spray Can) |
|
$ 80.69 | |||||
| 5 | 4392899 | Brush Touch-up Kit (biscuit |
|
Immediately | $ 23.81 | ||||
| 5 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 5 | 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) |
|
- | |||||
| 5 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 5 | W11729596 | Eckmf-94 (Replaces: 2155469) |
|
Immediately | $ 135.88 |
