SELECT A DIAGRAM

01 - Cover


02 - Backguard

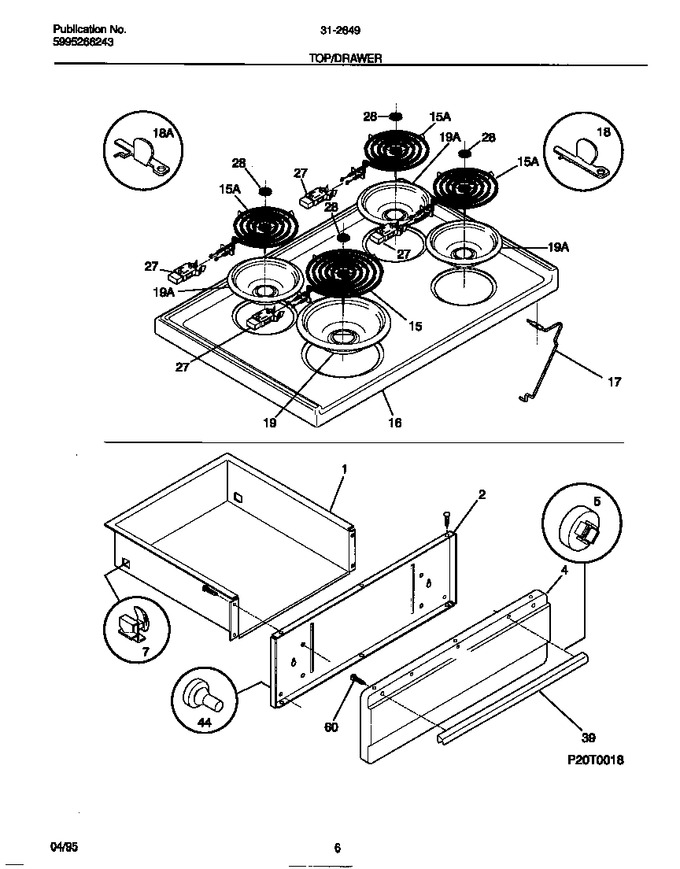

03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)		Appelez-nous	-
4	316056206		Panel,drawer ,almond		Appelez-nous	-
5	3131387		Fastener-spacer, Push-in Nut, Nylon		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
15	316442300		Element-surface,large/8 Inch   (Replaces: 5303015715)			Immediately	$ 59.16
15	318372210		Element-surface,small/6 Inch   (Replaces: 5303015716)			Immediately	$ 20.21
16	3051380		Main Top, Almond		Appelez-nous	-
17	316066900		Rod-maintop Support				$ 66.31
18	08067746		Bracket-hinge,main Top Lh		Appelez-nous	-
18	08067747		Bracket-hinge,main Top Rh		Appelez-nous	-
19	L304430992		Pan-surface Element, Small/6 Inch   (Replaces: 5303935057)				$ 9.59
19	316048413		Pan-surface Element, Large/8 Inch   (Replaces: 5303935054)			Immediately	$ 9.85
27	5303935058		Terminal Block Kit,surface Element   (Replaces: 5303912666)			Immediately	$ 13.81
28	3017801		Medallion, Stainless Steel, Surf Elem		Appelez-nous	-
39	3201268		Handle-drawer, Brushed Chrome		Appelez-nous	-
44	3131903		Bumper				$ 55.36
60	5303281651		Screw-drawer Handle, 8 Truss Head, 10-16 X 1/2		Appelez-nous	-
*35170	316058600		Clip-surface Element, (4)		Appelez-nous	-
*35171	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
