SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer

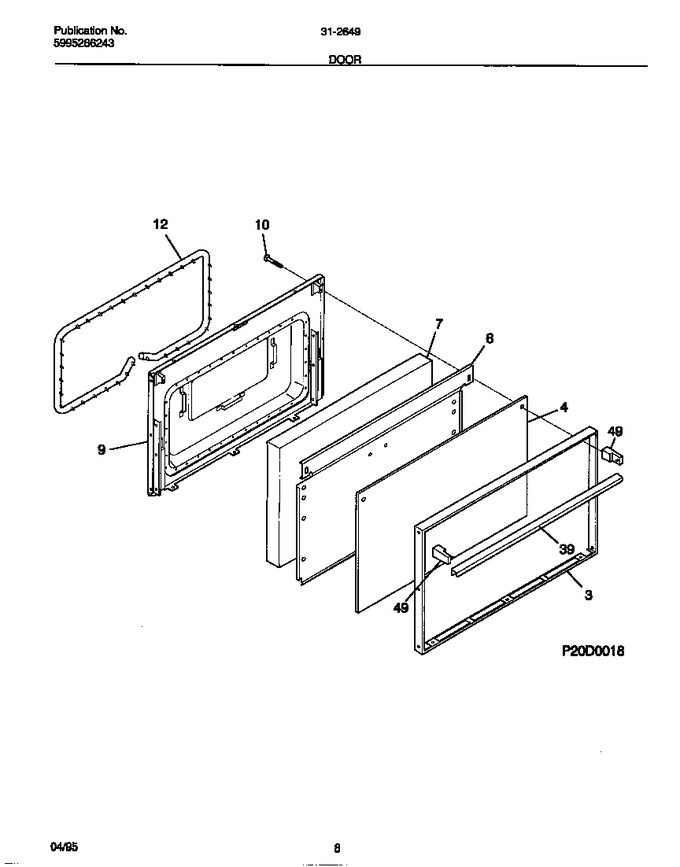

05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316067802		Trim-oven Door		Appelez-nous	-
4	5303051153		Glass-oven Door, Solid Black, Outer		Appelez-nous	-
6	5303209317		Shield-insulation, Black		Appelez-nous	-
7	5303209514		Insulation-oven Door		Appelez-nous	-
9	316066602		Liner-oven Door		Appelez-nous	-
10	5303281378		Screw-handle Mtg, Wafer Head, 10-24(f) X 3				$ 13.60
12	5303131601		Seal-oven Door				$ 374.63
39	5303273127		Handle-door, Black, Oven		Appelez-nous	-
49	3016755		End Cap, Black, (2)		Appelez-nous	-
*35172	3203618		Rivet-pop, Waring-plate		Appelez-nous	-
*35173	316065300		Plate Warning/caution		Appelez-nous	-
*35174	5303212671		Screw, Cr Pan Hd Sems, 8, 32(bp) X 1		Appelez-nous	-
*35175	5303212762		Screw,8-18 X 1/2		Appelez-nous	-
*35176	5303269859		Screw 8-18 X 1/2 Black		Appelez-nous	-
*35177	5303285179		Screw-oven Door, Wafer Head, 8-32(t) X 1/2				$ 13.46

    View Diagram in Separate Window       Print Part List
