01 - Back-side Electical Components

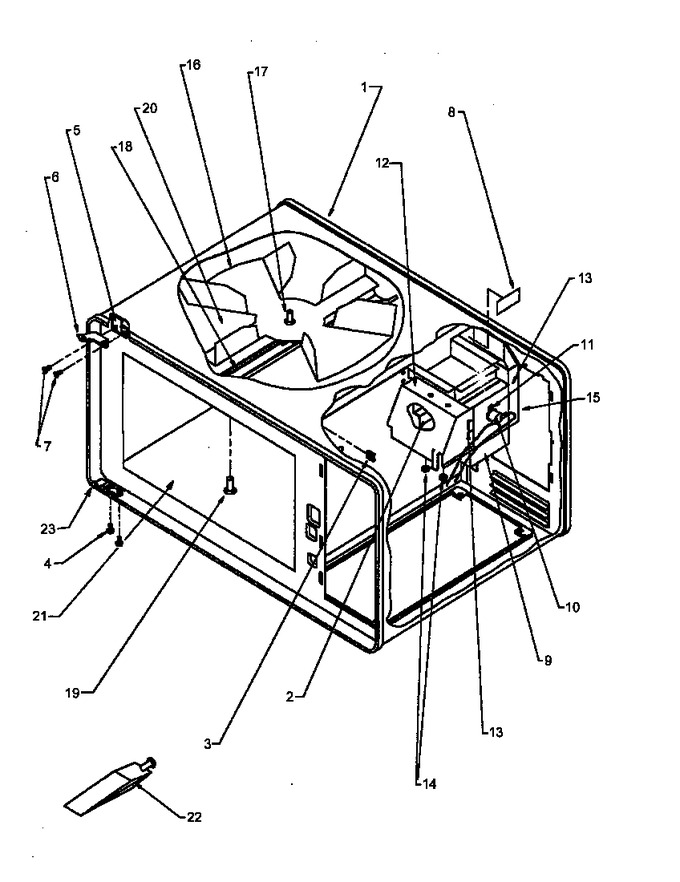

02 - Cavity Assy
03 - Control Panel Assy
04 - Door Assy
05 - Interior Elec Components And Mtg Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | M77D178 | Cavity Asy |
|
- | |||||
| 2 | 24642P01 | Foamx(bl) 1 Pc.= 1 Ft. |
|
- | |||||
| 3 | 5140-VV | Wire Clip |
|
- | |||||
| 4 | 5149-C | No.8-32 Pan Hd Mach Scr (25) |
|
- | |||||
| 5 | 45010P01 | Plate Nut |
|
- | |||||
| 6 | 45009P01 | Brkt Top |
|
- | |||||
| 7 | 5147-AA | No.6 Flat Hd Machine Screw |
|
- | |||||
| 8 | 10744601 | Cover-mylar |
|
- | |||||
| 9 | 10794403 | Magnetron |
|
- | |||||
| 10 | 1751802501 | Protector,thermal 180c 25 Amp |
|
- | |||||
| 11 | M0251717 | Screw |
|
- | |||||
| 12 | 3000004301 | Front Air Duct |
|
- | |||||
| 13 | 5031-SS | Gasket (1=1ft.) |
|
- | |||||
| 14 | 35691P01 | Ia 5mm Flange Whiz-lk Nut (25) |
|
- | |||||
| 15 | M65D365 | Rear Air Duct 1400utc |
|
- | |||||
| 16 | 10825902Q | Kit, Stirrer Blade |
|
- | |||||
| 17 | M2D678 | Kit, Stirrer Insert |
|
- | |||||
| 18 | M20D319 | Kit, Stirrer Bar |
|
- | |||||
| 19 | 5524122001 | Plastic Fastener |
|
- | |||||
| 20 | 3010017901 | Stirrer Cover M45d50 |
|
- | |||||
| 21 | M50D45 | Shelf Kit |
|
- | |||||
| 22 | W10841140 | Sealer (Replaces: M0275598) |
|
Immediately | $ 24.92 | ||||
| 23 | 45179P01 | Hinge Asy |
|
- |
