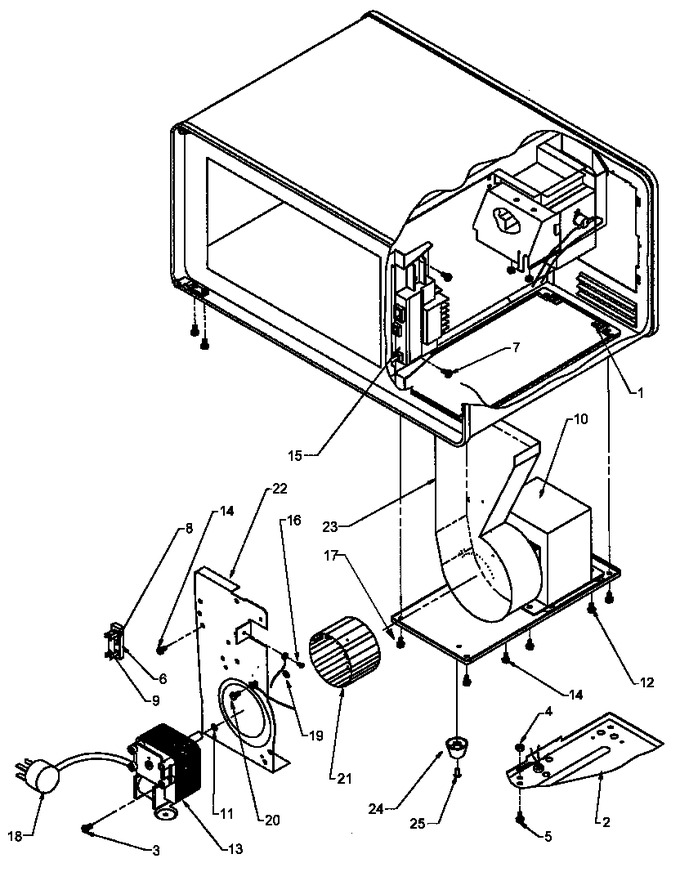

01 - Back-side Electical Components


02 - Cavity Assy


03 - Control Panel Assy


04 - Door Assy


05 - Interior Elec Components And Mtg Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5039TT		U-clip		Appelez-nous	-
2	M53D77		Btm Access Pnl		Appelez-nous	-
3	5145-W		No.8 Hi-lo X 3/8`` Screw		Appelez-nous	-
4	Y00000000		See Note Nut-hex, Keps		Appelez-nous	-
5	5146-FF		Screw, No.8 Mach		Appelez-nous	-
6	30928P01		Fuse Blk .250 Term, 40 Deg Tab		Appelez-nous	-
7	5015-X		Screw, Sm		Appelez-nous	-
8	A4539601		Pop Rivet		Appelez-nous	-
9	M0805106		Fuse, 10 Amp				$ 3.70
10	44652P01		X-fmr		Appelez-nous	-
11	WP3195558		Clip-blwr Ret   (Replaces: M0118903)				$ 7.68
12	5018-JJ		No.10 T X 3/8`` Screw		Appelez-nous	-
13	M12D105		Blower Motor Kit		Appelez-nous	-
14	5027-ZZ		Screw		Appelez-nous	-
15	R0163285		Switch, Interlock		Appelez-nous	-
16	Y00000000		See Note Nut-keps		Appelez-nous	-
17	5147-GG		Screw, Thermostat		Appelez-nous	-
18	1738379615		Powercord 250v 10/16 Amps		Appelez-nous	-
19	5010-LL		Nut K		Appelez-nous	-
20	5078-CC		Screw		Appelez-nous	-
21	M35D51		Blower Wheel Kit		Appelez-nous	-
22	3000030201		Brkt-blower		Appelez-nous	-
23	M65D330		Blower Housing Kit		Appelez-nous	-
24	26265P01		Molded Foot(4per Pkg.)		Appelez-nous	-
25	5067-CC		Pop Rivet		Appelez-nous	-
