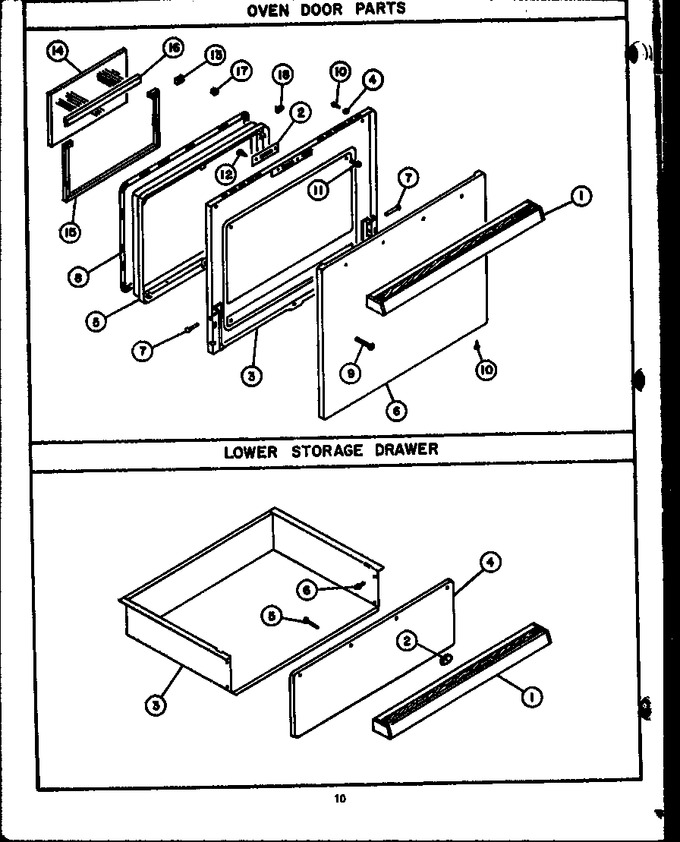

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	70181		Handle, Oven Door   (Replaces: 68150)			Immediately	$ 89.99
2	Y91530		Plate Latch		Appelez-nous	-
2	Y68285		Spacer, Handle		Appelez-nous	-
3	69762		Drawer Skirt Assembly				$ 138.11
3	71081		Oven Door Backer		Appelez-nous	-
4	71090D		Drawer Panel		Appelez-nous	-
4	71090C		Drawer Panel		Appelez-nous	-
4	71090N		Drawer Panel		Appelez-nous	-
4	71090V		Drawer Panel		Appelez-nous	-
4	71090W		Drawer Panel		Appelez-nous	-
4	Y0091604		Washer		Appelez-nous	-
5	1N4004		Sub Backer, Oven Door   (Replaces: 71083)		Appelez-nous	-
5	Y0091596		Screw		Appelez-nous	-
6	Y71886		Screw, Drawer Panel		Appelez-nous	-
6	71550		Oven Door Panel, Black		Appelez-nous	-
7	0091632		Rivet		Appelez-nous	-
8	1N4004		Gasket Assembly   (Replaces: 71637)		Appelez-nous	-
9	69465		Screw, Oven Door Handle				$ 11.70
10	Y71914		Screw, S.m.		Appelez-nous	-
11	Y71871		Screw, Sub Backer		Appelez-nous	-
12	71882		Screw, Latch Plate		Appelez-nous	-
13	79978		Spacer		Appelez-nous	-
14	Y00000000		See Note E Glass Panel -- After Sn 3702861 Use 66916)below Sn 3702861 Use 66529 Kit,		Appelez-nous	-
15	Y00000000		See Note Trim, Frame -- After Sn 3702861 Use 66915)below Sn 3702861use 66529 Kit,		Appelez-nous	-
16	70591		Trim, Handle Spacer		Appelez-nous	-
17	M0282009		Nut   (Replaces: Y0097885)				$ 12.06
18	Y71636		Speed Clip, Gasket		Appelez-nous	-
