Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 0091517 Bracket Assembly Appelez-nous -
2 0091518 Bracket Assembly Appelez-nous -
3 Y91504 Tube, Oven Vent Appelez-nous -
4 75169 Orifice Appelez-nous -
5 Y71668 Hair Pin Clip Appelez-nous -
6 Y71890 Cotter Pin Appelez-nous -
8 79758 Cover Plate Appelez-nous -
9 Y91575 Lens Gasket, Oven Light Appelez-nous -
10 Y71876 Washer Appelez-nous -
11 Y0091536 Hook Bolt Appelez-nous -
12 Y91354 Insulation, Oven Wrap Appelez-nous -
13 Y0091355 Sub 41966, Insulation, 6` Appelez-nous -
14 Y0091356 Sub 41966, Insulation Appelez-nous -
15 0091400 Lens Appelez-nous -
15 67985 Lens, Oven Light Appelez-nous -
16 Y71881 Nut, Hex 10-32 Appelez-nous -
18 Y71061 Oven Shell Assembly Appelez-nous -
18 DE81-07256A Oven Shell Assembly   (Replaces: 66984) Special Order $ 142.43

19 4396923 Broiler Pan   (Replaces: 11161) In-Stock Immediately $ 52.04

20 71204 Retainer Plate Appelez-nous -
21 Y0091339 Plate Appelez-nous -
22 4396923 Broiler Grid   (Replaces: Y0098682) In-Stock Immediately $ 52.04

23 WP314763J Oven Rack - Regular   (Replaces: 67810) Special Order $ 70.11

24 71048 Lens Retainer, Oven Light Appelez-nous -
26 Y0091546 Support Appelez-nous -
28 91313 Shield, Vent Tube Appelez-nous -
29 Y0091503 Smoke Eliminator Appelez-nous -
31 79431 Screw, Shoulder Appelez-nous -
32 Y0091542 Support, Maintop Appelez-nous -
33 M0282009 Nut, 10-24 Hex Keps   (Replaces: Y0097904) Special Order $ 12.06

34 71077N Main Top, Almond Appelez-nous -
34 71077C Main Top - Coffee Appelez-nous -
34 71077W Main Top - White Appelez-nous -
34 71077D Main Top, Gold Appelez-nous -
34 71077V Main Top - Avocado Appelez-nous -
35 WPW10196406 Burner Bowl 6``   (Replaces: 67988) In-Stock Immediately $ 12.05

36 WPW10196405 Harness   (Replaces: 75482) In-Stock Immediately $ 15.56

38 71203 Wire Clamp Appelez-nous -
39 Y0096604 Nut, Type ``u`` Appelez-nous -
NI Y67879 Cover Plate, Oven Lamp Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

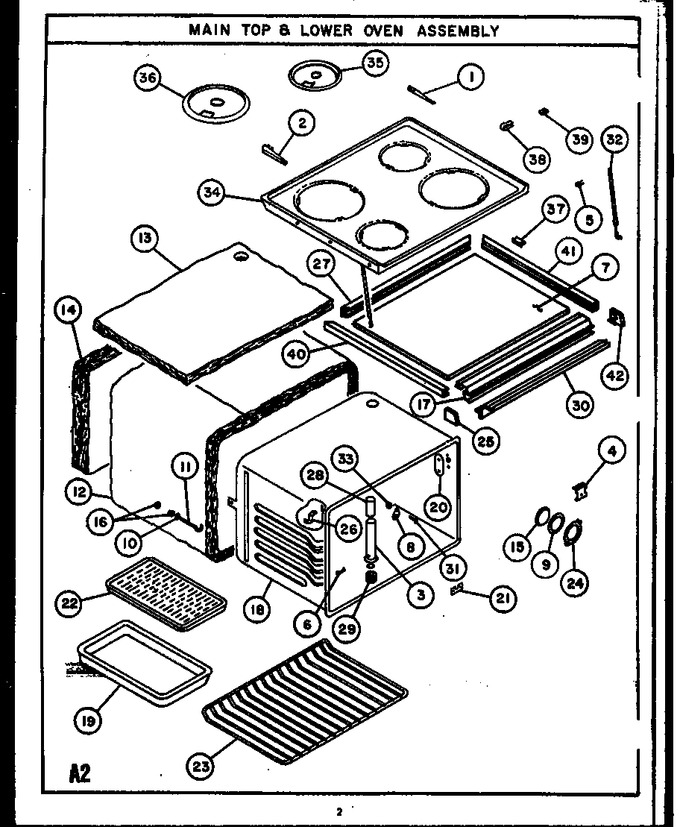

Diagram for EVP394
