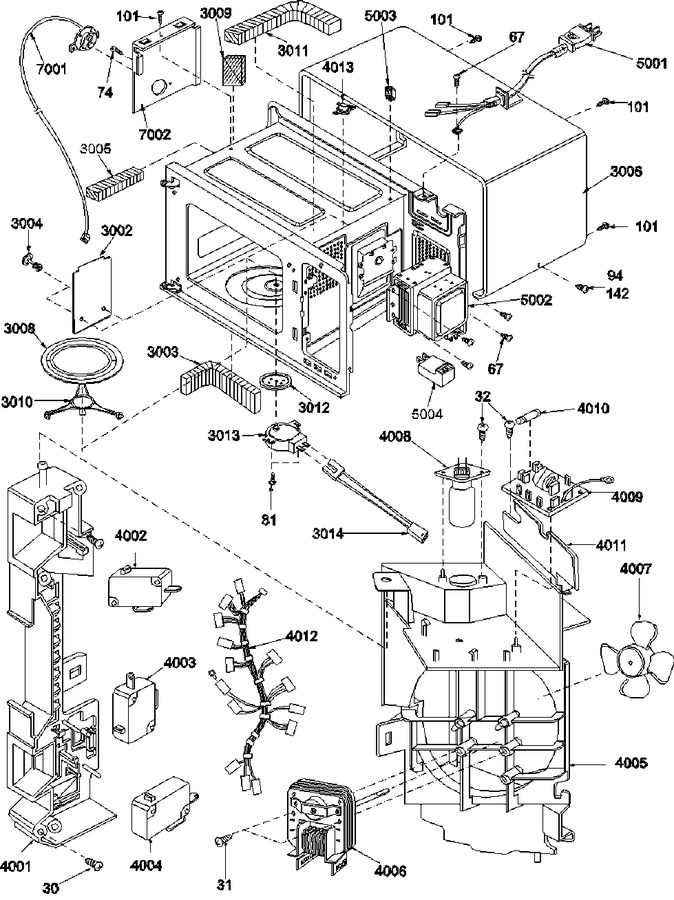

02 - Internal Components
03 - Miscellaeous Information
04 - Transformer & Base Plate
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 30 | R9800405 | Motor-rotating Glass Tray |
|
- | |||||
| 30 | R9800691 | Screw, Special D |
|
- | |||||
| 30 | R9800402 | Mount-rotating Glass Tray |
|
- | |||||
| 31 | R9800411 | Screw, Tap Th |
|
- | |||||
| 32 | R0654183 | Screw, Truss Hd |
|
- | |||||
| 67 | 4344826 | Screw, Bining Hd S/tap (Replaces: R0654143) |
|
$ 14.31 | |||||
| 74 | R0654029 | Screw, Pan Hd S/tap |
|
- | |||||
| 81 | R0654180 | Screw, Pan Hd |
|
- | |||||
| 94 | R0654181 | Screw, Truss Hd |
|
- | |||||
| 101 | R0654038 | Screw, Truss Hd S/tap |
|
- | |||||
| 142 | R9800309 | Screw, Tap Th |
|
- | |||||
| 300 | R9800367 | Canopy, Mica |
|
- | |||||
| 300 | R9800382 | Outer Case (white) |
|
- | |||||
| 300 | WPW10267856 | Tray, Glass (Replaces: R9800389) |
|
$ 63.44 | |||||
| 300 | R9800394 | Gasket |
|
- | |||||
| 300 | R9800399 | Cushion |
|
- | |||||
| 300 | R0131105 | Ring, Rotating |
|
- | |||||
| 300 | R9800406 | Harness-rotating Glass Tray |
|
- | |||||
| 300 | R9900351 | Cushion |
|
- | |||||
| 300 | R9800368 | Cushion |
|
- | |||||
| 300 | WP4359508 | Rivet, Plastic (Replaces: R9800452) |
|
$ 8.28 | |||||
| 400 | 56001100 | Switch, Micro-monitor |
|
$ 10.64 | |||||
| 400 | R9800422 | Fan Blade |
|
- | |||||
| 400 | R9800499 | Assy, Sensor Guide |
|
- | |||||
| 400 | WP8183592 | Lamp, Oven/baseless (Replaces: R9800423) |
|
$ 41.09 | |||||
| 400 | R9800426 | Harness |
|
- | |||||
| 400 | R9800415 | Board, Latch |
|
- | |||||
| 400 | R9800420 | Motor, Fan |
|
- | |||||
| 400 | R0802510 | Switch, Micro-primary |
|
- | |||||
| 400 | R9800472 | Assy, Fuse Block/noise Filter |
|
- | |||||
| 400 | R9800425 | Guide |
|
- | |||||
| 400 | R9800418 | Guide-suction Air Fan |
|
- | |||||
| 401 | WP8183507 | Fuse (Replaces: R0131110) |
|
$ 18.33 | |||||
| 401 | R9800399 | Cushion |
|
- | |||||
| 401 | R9800429 | Thermostat |
|
- | |||||
| 500 | W10859575 | Magnetron (Replaces: R9900082) |
|
$ 361.62 | |||||
| 500 | R9800442 | Assy, Choke Filter |
|
- | |||||
| 500 | R9800434 | Cord, Power |
|
- | |||||
| 700 | R9800469 | Sensor, Humidity |
|
- | |||||
| 700 | R9800499 | Assy, Sensor Guide |
|
- |
