SELECT A DIAGRAM

01 - Door & Control Panel


02 - Internal Components


03 - Miscellaeous Information

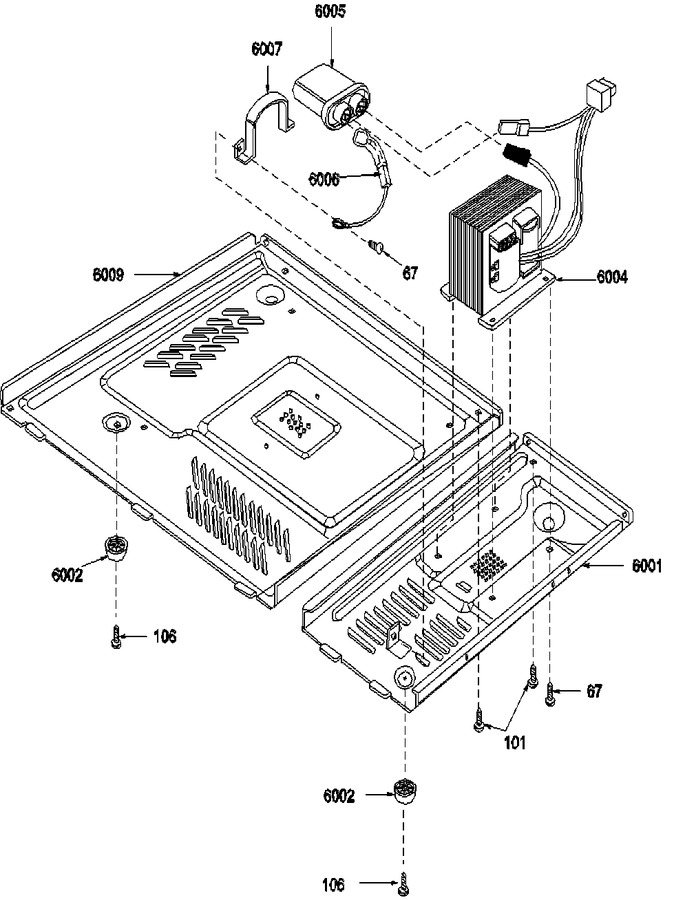

04 - Transformer & Base Plate


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
67	4344826		Screw, Bining Hd S/tap   (Replaces: R0654028)				$ 14.31
101	R0131246		Screw, Tapping Truss Head		Appelez-nous	-
106	R0654183		Screw, Truss Hd		Appelez-nous	-
600	WP59001168		Capacitor-1.00   (Replaces: 12548810)			Immediately	$ 208.35
600	WPR9800486		Diode- Black Sleeve   (Replaces: R9800486)				$ 26.79
600	R9800482		Transformer, H.v.		Appelez-nous	-
600	R9800488		Bracket, Hvc		Appelez-nous	-
600	R9800477		Plate, Base-rh		Appelez-nous	-
600	R0654128		Leg		Appelez-nous	-
600	R0131297		Plate,base-lh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
