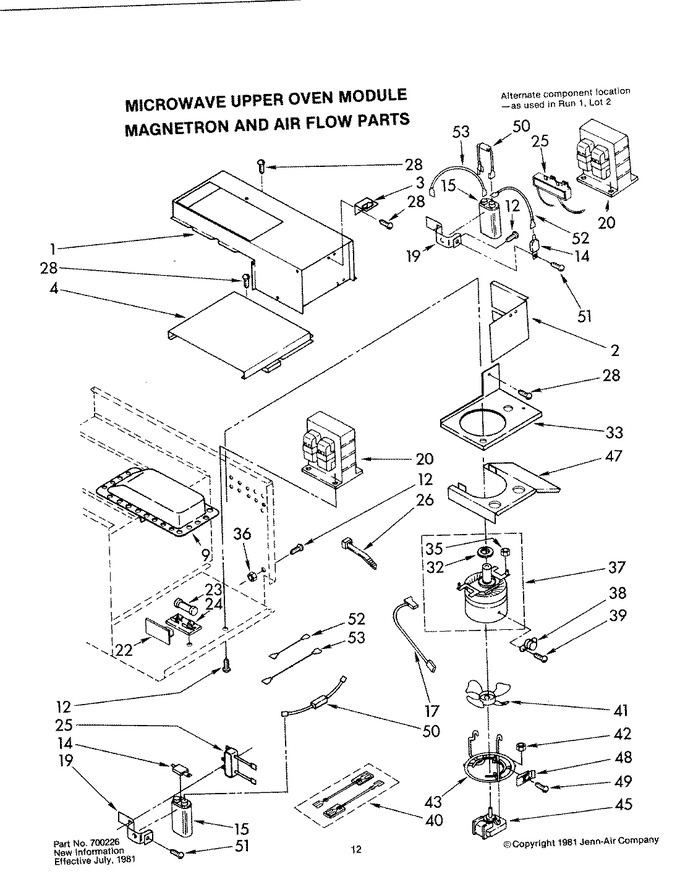

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 701451 | Duct-cool A |
|
- | |||||
| 2 | 701452 | Baffle, Air |
|
- | |||||
| 3 | DE81-08454A | Bracket, Receptacle (Replaces: 701453) |
|
$ 242.57 | |||||
| 4 | 701454 | Duct-disch |
|
- | |||||
| 9 | W10124350 | Not Required Part Or See Note Wave Guide |
|
- | |||||
| 12 | 700971 | Screw |
|
- | |||||
| 14 | Y701455 | Rectifier-hv |
|
- | |||||
| 15 | DE81-04333A | Capacitor (Replaces: 701093) |
|
$ 100.49 | |||||
| 17 | 701011 | Wire |
|
- | |||||
| 19 | 701007 | Bracket |
|
- | |||||
| 20 | 700998 | Transformer |
|
- | |||||
| 22 | DE81-05656A | Shield (Replaces: 701091) |
|
$ 200.67 | |||||
| 23 | 701456 | Fuse, 250v 20a |
|
- | |||||
| 24 | 701034 | Fuse Block |
|
$ 83.05 | |||||
| 25 | 701025 | Relay |
|
- | |||||
| 26 | 701016 | Tie |
|
- | |||||
| 28 | 700969 | Screw |
|
- | |||||
| 32 | W10124350 | Not Required Part Or See Note Magnetron Gasket |
|
- | |||||
| 33 | 701458 | Duct-bot Air |
|
- | |||||
| 35 | 11069197 | Nut (Replaces: 701075) |
|
- | |||||
| 36 | 701022 | Nut Hex |
|
- | |||||
| 37 | 00701074 | Magnetron (Replaces: 701074) |
|
$ 305.85 | |||||
| 38 | 700989 | Thermostat |
|
$ 199.34 | |||||
| 39 | 700965 | Screw |
|
- | |||||
| 40 | DE81-04237A | Wire Kit (Replaces: 700973) |
|
$ 391.00 | |||||
| 41 | DE81-04916A | Fan Blade (Replaces: 700980) |
|
$ 1,139.87 | |||||
| 42 | 701155 | Nut |
|
- | |||||
| 43 | DE81-06300A | Mount (Replaces: 701092) |
|
$ 111.27 | |||||
| 45 | 701459 | Motor, Fan |
|
- | |||||
| 47 | 701460 | Shld-magntrn |
|
- | |||||
| 48 | 701009 | Fastener |
|
- | |||||
| 49 | 701156 | Screw |
|
- | |||||
| 50 | 701461 | Resistor |
|
- | |||||
| 51 | DE81-06503A | Screw (Replaces: 701098) |
|
$ 18.68 | |||||
| 52 | 701462 | Lead-hv |
|
- | |||||
| 53 | 701463 | Lead-hv |
|
- | |||||
| 53 | 701661 | Ballast |
|
- |
