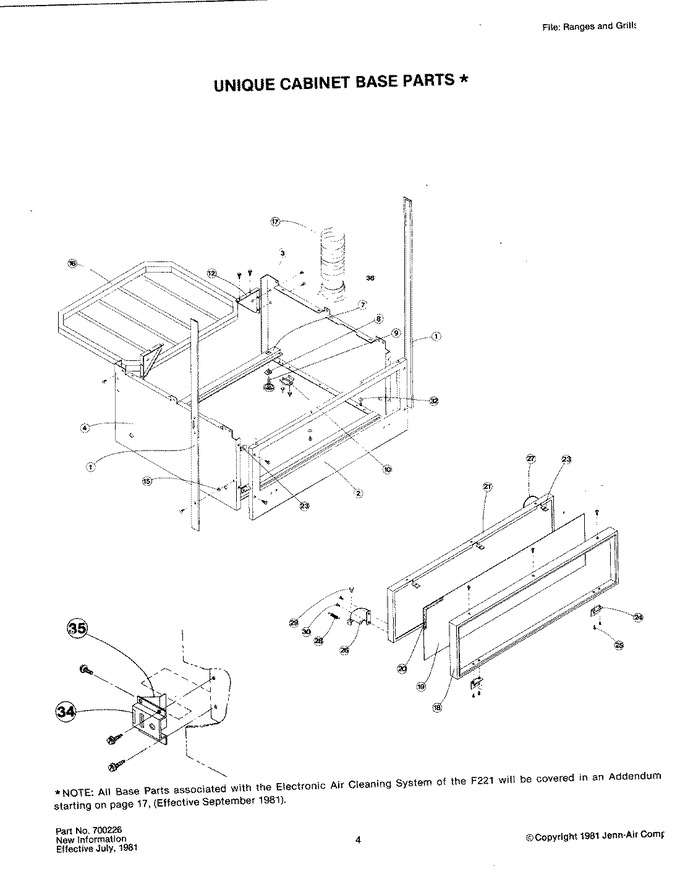

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	700898		Side Trim		Appelez-nous	-
2	700899		Base Frnt Cl		Appelez-nous	-
3	700900		Side Pan Rh		Appelez-nous	-
4	DE81-04911A		Side Pan Lh   (Replaces: 700901)				$ 152.47
7	DE81-05462A		Sect-lev Hat   (Replaces: 701357)				$ 165.49
8	700903		Anchor Level		Appelez-nous	-
9	W11117769		Leveler,adjust   (Replaces: Y708696)			Immediately	$ 16.61
10	700904		Spring Clip				$ 743.10
12	700905		Corner Guss		Appelez-nous	-
15	700907		Spacer Wash		Appelez-nous	-
16	DE81-04941A		Base Tray   (Replaces: 700908)				$ 233.86
17	DE81-05018A		Flex Duct   (Replaces: 700909)				$ 318.91
18	715360		Door Frame		Appelez-nous	-
19	700910		Trim Panel		Appelez-nous	-
20	700911		Tape 76in		Appelez-nous	-
21	715361		Base Door Liner		Appelez-nous	-
23	715389		J Tinnerman		Appelez-nous	-
24	715388		Hinge		Appelez-nous	-
25	715937		6bx.312 Flhd		Appelez-nous	-
26	700912		Spr Brkt Lh		Appelez-nous	-
27	700913		Spr Brkt Rh		Appelez-nous	-
28	DE81-04376A		Spring   (Replaces: 700914)				$ 147.47
29	708361		Bumper, Button		Appelez-nous	-
30	W11233072		Screw   (Replaces: Y707347)			Immediately	$ 12.62
32	700940		Stand-off		Appelez-nous	-
34	700917		Rear Att Bkt		Appelez-nous	-
35	700918		Attch Guss		Appelez-nous	-
36	715546		Vent Adaptor		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
