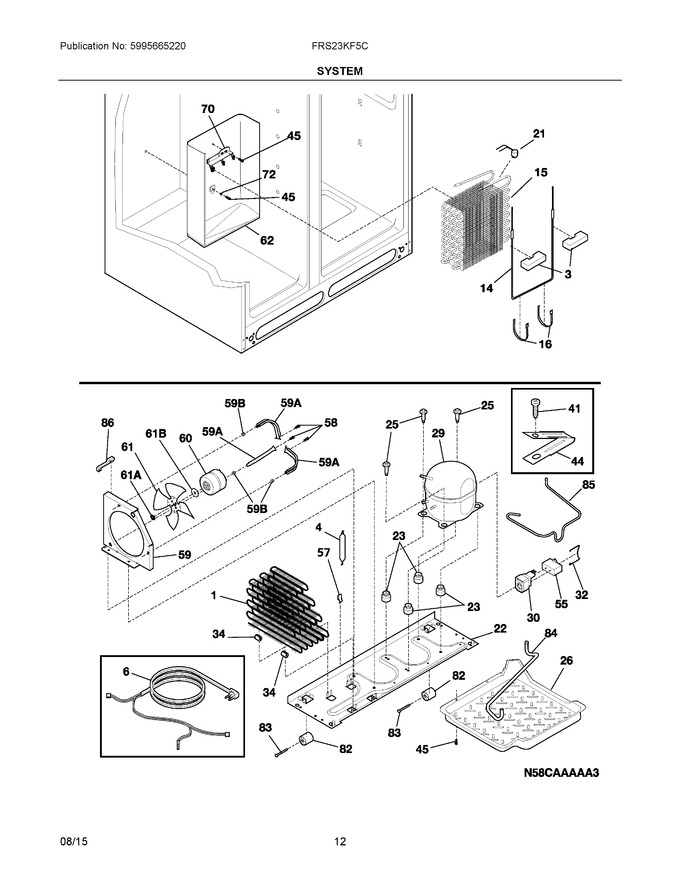

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	240333602		Condenser		Appelez-nous	-
3	218679606		Block-evap Coil, Styrofoam, (2)		Appelez-nous	-
4	5303305677		Drier-filter, R134a System   (Replaces: 218944001)			Immediately	$ 31.67
6	240346402		Harness-wiring, Machine Compt		Appelez-nous	-
14	5303918255		Defrost Heater Kit   (Replaces: 5303918253)			Immediately	$ 103.48
15	5303918286		Evaporator Kit				$ 354.85
16	5308000110		Strap-evap/heater, Aluminum, (2)			Immediately	$ 59.82
21	5303918214		Thermostat-defrost, Kit			Immediately	$ 33.42
22	240330007		Base-compressor Mtg		Appelez-nous	-
23	218513300		Grommet-compr Mtg, (4)				$ 42.53
25	240491501		Screw-compressor Mtg, 1/4-28 X 1.16, Shoulder, Typ Cf		Appelez-nous	-
26	241697603		Pan-defrost Drain   (Replaces: 240332602)				$ 79.22
29	5304511983		Compressor, W/electricals   (Replaces: 5303918251)				$ 671.86
30	5304491941		Starter, Ptc   (Replaces: 218721119)			Immediately	$ 103.19
32	218973501		Clamp, Elec Cont Mtg, Compressor				$ 21.97
34	240405201		Grommet, Rubber, Black, Cond Tube/wire				$ 19.85
41	240555001		Screw-#8-32 X 3/8		Appelez-nous	-
44	215174700		Clamp-service Cord, Strain Relief, Galv Steel		Appelez-nous	-
45	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile   (Replaces: 5308016566)				$ 14.18
55	218909912		Capacitor-run, 220 Vac, 12 Microfarad			Immediately	$ 74.75
57	240542601		Clip-wiring Harness		Appelez-nous	-
58	215004600		Screw, Hx Serr Wshr Hd, 8-36 X 7/16, Cond Fan Motor, (2)		Appelez-nous	-
59	240315501		Shroud-cond Fan				$ 65.42
60	240334003		Motor-condenser Fan		Appelez-nous	-
61	240315401		Fan Blade, Galv Steel, Condenser Fan				$ 169.54
62	240429401		Trough-drain				$ 118.91
70	218990801		Bracket-evap/cvr Mtg				$ 63.79
72	218397000		Button-handle Mtg, Dovetail				$ 16.74
82	5304418225		Roller, Compressor Base, Rear, (2)				$ 51.57
83	5304455655		Rivet, Flat Head, 1/4 Od X 1-3/4, Roller Pin   (Replaces: 5303316859)			Immediately	$ 35.34
84	241957901		Tube-drain, Lower   (Replaces: 5304421068)				$ 60.96
85	240346201		Tube-connector, Suction		Appelez-nous	-
86	240409302		Spacer-cond Tube, Black				$ 67.49
59A	240346501		Bracket-support, Cond Mtr, (3)				$ 21.97
59B	240346601		Grommet-bracket, (3)				$ 19.24
61A	215004700		Nut, Speed				$ 3.78
61B	215004800		Grommet-silencer				$ 52.50
NI	5303918222		Hot Tube Repair Kit, Service				$ 418.12
NI	5303918328		Heat Exchanger Kit, Suction Line   (Replaces: 5303918213)				$ 367.18
NIA	240346701		Tape-foam Seal, Shroud				$ 29.77
NIA	240449601		Harness-wiring				$ 201.65
NIA	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
NIB	241537802		Harness-wiring, Control Box				$ 15.02
NIB	240359401		Screw-fan Shroud, (2)		Appelez-nous	-
