SELECT A DIAGRAM

01 - Cover Sheet


02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls


07 - System


08 - Ice & Water Dispenser


09 - Ice Container

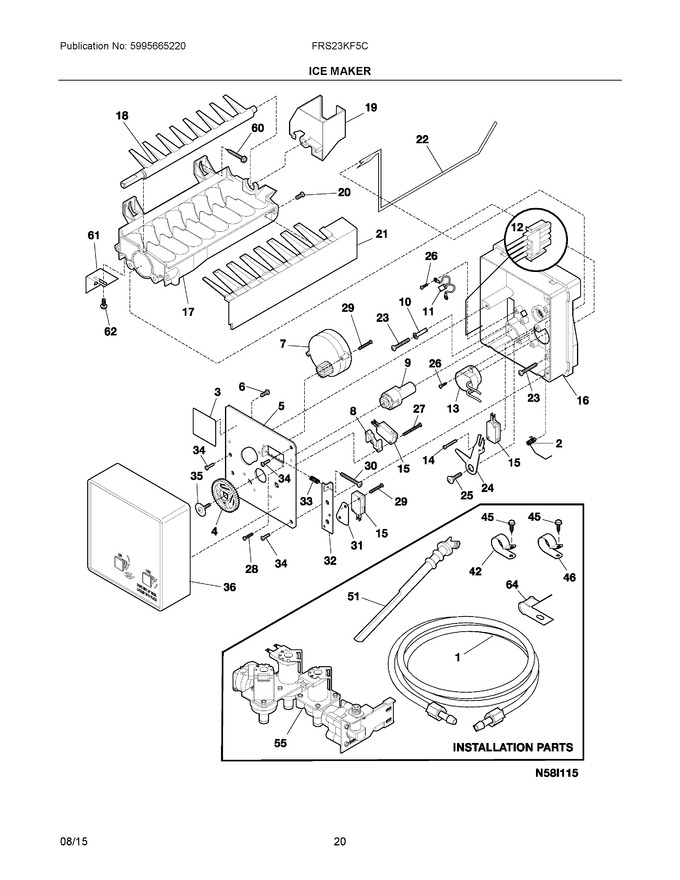

10 - Ice Maker


11 - Wiring Schematic


12 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976409		Tube-water			Immediately	$ 60.25
2	5304420650		Spring, Shut-off Arm		Appelez-nous	-
3	3206299		Label, Id Plate		Appelez-nous	-
4	3206301		Gear		Appelez-nous	-
5	3206303		Plate-mounting				$ 47.41
6	3206305		Screw-ground Wire, 8-32 X 0.250		Appelez-nous	-
7	5303918277		Motor-ice Maker   (Replaces: 3206306)			Immediately	$ 96.11
8	3206312		Spacer-hold Switch		Appelez-nous	-
9	3206313		Cam		Appelez-nous	-
10	3206315		Clamp				$ 35.33
11	3206319		Thermal Cutoff, Ice Maker, Complete Assy				$ 48.72
12	240352601		Wiring Harness, Ice Maker, Internal, With Plug		Appelez-nous	-
13	3206322		Thermostat Assy, Ice Maker				$ 130.41
14	5304420652		Screw, 4 X 0.750, Switch Mtg.		Appelez-nous	-
15	5304456667		Switch, (3)   (Replaces: 3206324)				$ 92.53
16	5304420653		Support, Phenolic		Appelez-nous	-
17	241798231		Mold-ice Maker, Radius Cube, With Heater   (Replaces: 5303320545)			Immediately	$ 200.97
18	3206328		Ejector-ice		Appelez-nous	-
19	3206330		Bearing & Inlet		Appelez-nous	-
20	5304408581		Screw, 8-32 X 0.375		Appelez-nous	-
21	3206332		Ice Stripper		Appelez-nous	-
22	3206333		Shut-off Arm		Appelez-nous	-
23	5304408582		Screw, 8-32 X 0.875, Mold-to-support, (3)		Appelez-nous	-
24	5304456675		Lever Arm   (Replaces: 3206335)				$ 66.63
25	3206336		Screw, 8-18 X 0.562, Lever Arm/sprt		Appelez-nous	-
26	5304420654		Screw-thermo/sprt, 4-24 X 0.375, (4)		Appelez-nous	-
27	3206338		Screw, 4-40 X 1.000, Hold Switch Mtg, (2)		Appelez-nous	-
28	3206339		Screw-timing Stop, 4-40 X 0.375		Appelez-nous	-
29	3206323		Screw, 4-24 X 0.750, (6)		Appelez-nous	-
30	3206341		Screw-timing Adj, 8-32 X 1.000		Appelez-nous	-
31	3206342		Insulator		Appelez-nous	-
32	3206343		Plate-valve Switch		Appelez-nous	-
33	5304408583		Spring-timing Adj		Appelez-nous	-
34	5304420655		Screw, Plazscrew, 8-10, (3)		Appelez-nous	-
35	5304408585		Screw		Appelez-nous	-
36	3206347		Cover-ice Maker				$ 29.24
42	5303001199		Clamp-wiring Harness, Strain Relief, Galv Steel				$ 65.92
45	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile   (Replaces: 5308016566)				$ 14.18
46	5303001193		Clamp, .50 Id, Steel, Water Tube				$ 16.30
51	241796405		Tube-water, Ice Mold Fill, Extension   (Replaces: 240387101)				$ 18.43
55	242252702		Valve-water, Triple Solenoid   (Replaces: 240531101)			Immediately	$ 132.71
60	5304455852		Screw, Hex Washer Head, 8-15a X 1.000, (2)   (Replaces: 5303207328)				$ 12.76
61	218721500		Bracket-leveling, Ice Maker				$ 73.00
62	218737900		Screw-im Brkt Mtg, Hex Washer Head, 8-32d X 0.375		Appelez-nous	-
64	5304455846		Clamp, 0.31 Id, Steel, Copper Wtr Line   (Replaces: 5303001549)				$ 10.63
NI	5304458371		Ice Maker, Radius Cube, 115 V, No Instl Parts   (Replaces: 240352411)			Immediately	$ 247.73
NI	218888001		Adapter-water Supply, Nut & Sleeve, Compression Ftg				$ 63.42
NIA	218709100		Screw, Hex Head, 10-32 X 0.500		Appelez-nous	-
NIA	240396801		Clamp, Nylon, .625 Id   (Replaces: 5308000133)				$ 19.13
NIA	218976903		Tube-water Inlet, Inlet Valve, To Filter				$ 70.16
NIA	218515402		Clip, (2), Tube Mtg.		Appelez-nous	-
NIA	5304455651		Screw, Hex Washer Head, 8-15a X 0.500   (Replaces: 5303001343)				$ 14.41
NIB	218976907		Tube-water Inlet, Valve To Door				$ 67.73
NIB	240363602		Screw-shoulder   (Replaces: 240363601)				$ 13.65
NIC	240561701		Seal-water Inlet, Inlet Valve, To Ice Maker			Immediately	$ 20.56
NIC	240542901		Cap-water Valve				$ 18.95

    View Diagram in Separate Window       Print Part List
