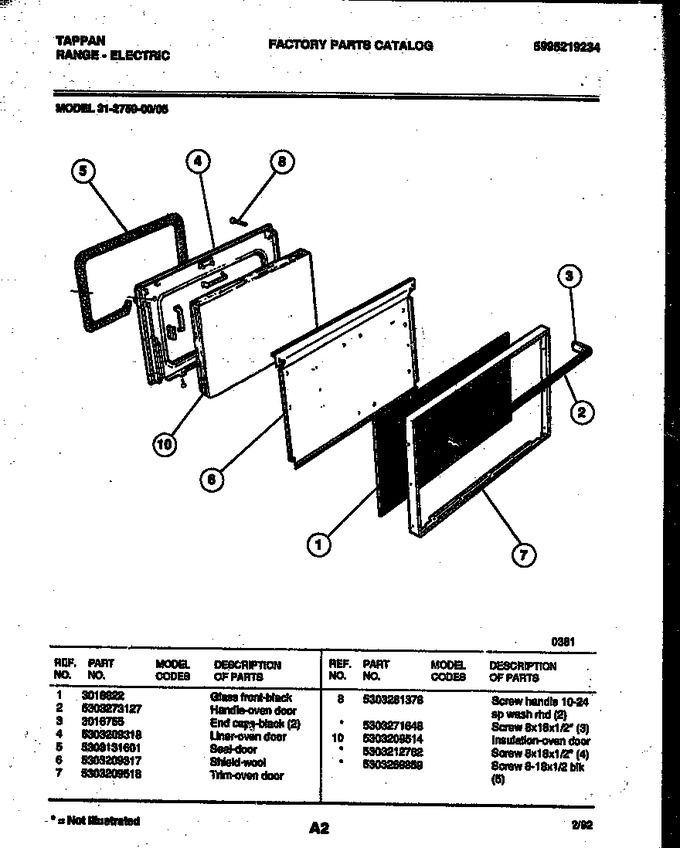

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3018822 | Glass Front - Black |
|
- | |||||
| 2 | 5303273127 | Handle-oven Door |
|
- | |||||
| 3 | 3016755 | End Caps, Black (2) |
|
- | |||||
| 4 | 5303209318 | Liner-oven Door |
|
- | |||||
| 5 | 5303131601 | Seal, Door |
|
$ 374.63 | |||||
| 6 | 5303209317 | Shield-wool |
|
- | |||||
| 7 | 5303209518 | Trim-oven Door |
|
- | |||||
| 8 | 5303281378 | Screw Handle 10-24 Sp Wash Rhd (2) |
|
$ 13.60 | |||||
| 10 | 5303209514 | Insulation-oven Door |
|
- | |||||
| *66719 | 5303269859 | Screw 8-18 X 1/2 Blk (5) |
|
- | |||||
| *66719 | 5303212762 | Screw 8 X 18 X 1/2`` (4) |
|
- | |||||
| 8A | 5303271648 | Screw-8 X 18 X 1/2`` (3) (non-illustrated) |
|
Immediately | $ 13.46 |
