02 - Door Parts


03 - Cooktop Parts


04 - Broiler Parts


05 - Drawer Parts


06 - Body Parts


07 - Backguard

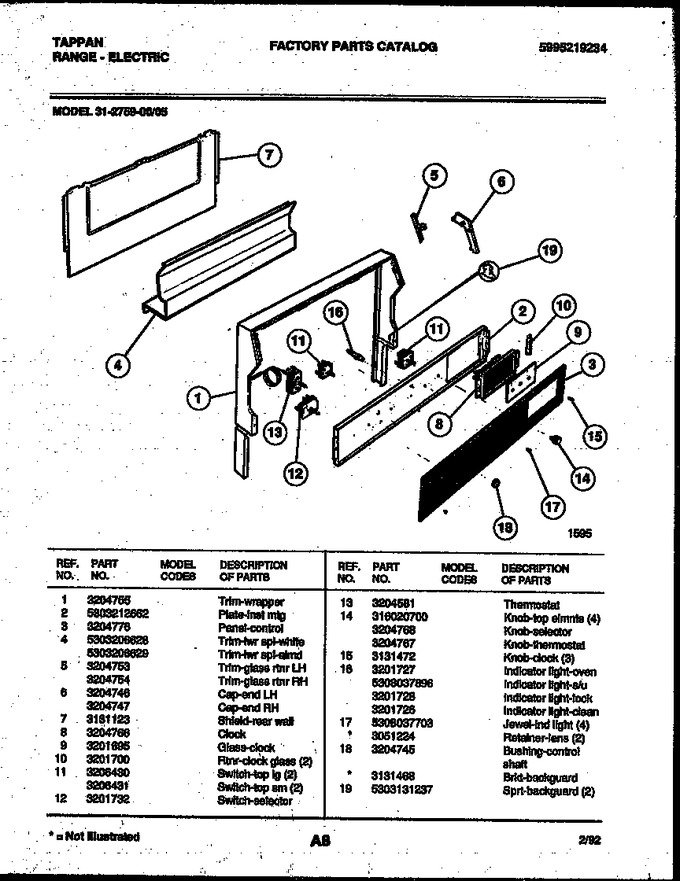

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3204755		Trim, Wrapper		Appelez-nous	-
2	5303212662		Plate - Inst Mtg		Appelez-nous	-
3	3204776		Panel - Control		Appelez-nous	-
4	5303206629		Trim-lwr Spl-almd		Appelez-nous	-
5	3204754		Trim-glass Rtnr Rh		Appelez-nous	-
5	3204753		Trim-glass Rtnr Lh		Appelez-nous	-
6	3204747		Cap-end Rh		Appelez-nous	-
6	3204746		Cap-end Lh		Appelez-nous	-
7	3131123		Shield, Rear Wall		Appelez-nous	-
8	3204766		Clock		Appelez-nous	-
9	3201695		Glass - Clock		Appelez-nous	-
10	3201700		Rtnr-clock Glass (2)		Appelez-nous	-
11	3206430		Switch-top Lg (2)		Appelez-nous	-
11	3206431		Switch-top Sm (2)		Appelez-nous	-
12	3201732		Switch-selector		Appelez-nous	-
13	3204581		Thermostat		Appelez-nous	-
14	3204767		Knob-thermostat		Appelez-nous	-
14	316020700		Knob-top Elmnts (4)		Appelez-nous	-
14	3204768		Knob - Selector		Appelez-nous	-
15	3131472		Knob-clock (3)		Appelez-nous	-
16	3201726		Indicator Light - Clean		Appelez-nous	-
16	3201728		Indicator-light Lock		Appelez-nous	-
16	5308037896		Indicator Light				$ 39.75
16	3201727		Indicator Light - Oven		Appelez-nous	-
17	5308037703		Jewel - Ind Light (4)		Appelez-nous	-
18	3204745		Bushing, Control Shaft		Appelez-nous	-
19	5303131237		Sprt-backguard (2)		Appelez-nous	-
17A	3051224		Retainer-lens (2) (non-illustrated)		Appelez-nous	-
18A	3131468		Brkt - Backguard (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
