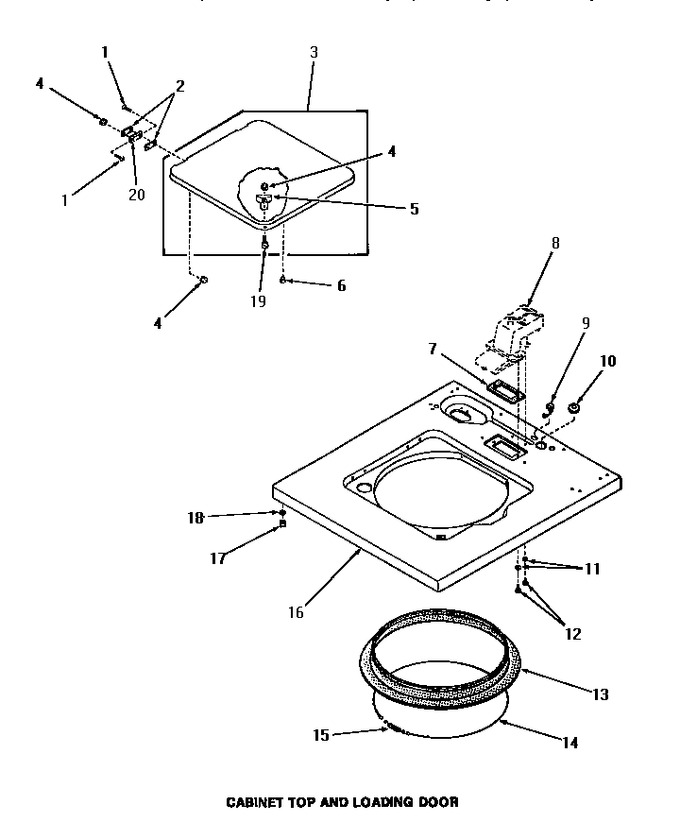

07 - Cabinet Top & Loading Door


08 - Cbal Weight, Brkt, Mtg Plt & Trans


09 - Control Hood


10 - Control Panel & Controls


11 - Door Safety Switch


12 - Drain


13 - Main Bearing Assy & Spin Belt


14 - Mixing Valve Assy


15 - Motor & Pump Assy


16 - Motor, Fluid Drive & Pump Belt


17 - Panels


18 - Power Cord, Wire & Terminals


19 - Pump Assy


20 - Suds-water Saver Assy


21 - Suds-water Saver Valve Assy


22 - Transmission Assy


23 - Water Inlet & Filler Hose


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	26649		Phillips Head Screw		Appelez-nous	-
2	21584		Gasket				$ 22.99
3	26901W		Assy,lid & Catch Xreplace		Appelez-nous	-
3	26901L		Assy,lid & Catch		Appelez-nous	-
3	26901H		Assy,lid & Catch		Appelez-nous	-
3	26901C		Loading Door, Coppertone		Appelez-nous	-
3	26901K		Loading Door, Coffee		Appelez-nous	-
3	26901A		Loading Door, Avocado		Appelez-nous	-
4	21752		Nut,8-32 Hex Brilock		Appelez-nous	-
5	25217		Catch,lid Switch		Appelez-nous	-
6	21176		Bumper		Appelez-nous	-
7	23255		Gasket		Appelez-nous	-
8	Y00000000		See Note Water Inlet		Appelez-nous	-
9	21903		Strain Relief		Appelez-nous	-
10	20118		Grommet,1982 Inv		Appelez-nous	-
11	20493		Washer,11/64idx3/8odx3		Appelez-nous	-
12	55469		Screw, 8b-16x5/8 Tap		Appelez-nous	-
13	25277		Guard, Rim		Appelez-nous	-
14	22352		Retainer,wire		Appelez-nous	-
15	20791		Spring		Appelez-nous	-
16	26819W		Cabinet Top, White		Appelez-nous	-
16	26819C		Cabinet Top, Coppertone		Appelez-nous	-
16	26819K		Cabinet Top, Coffee		Appelez-nous	-
16	26819A		Cabinet Top, Avocado		Appelez-nous	-
16	26819H		Cabinet Top, Harvest Gold		Appelez-nous	-
16	26819L		Assy,top		Appelez-nous	-
17	23007		Caged Nut		Appelez-nous	-
18	24861		Lockwasher,.448x.789sh		Appelez-nous	-
19	26769		Assy,screw & Washer		Appelez-nous	-
20	21583		Hinge				$ 36.99
