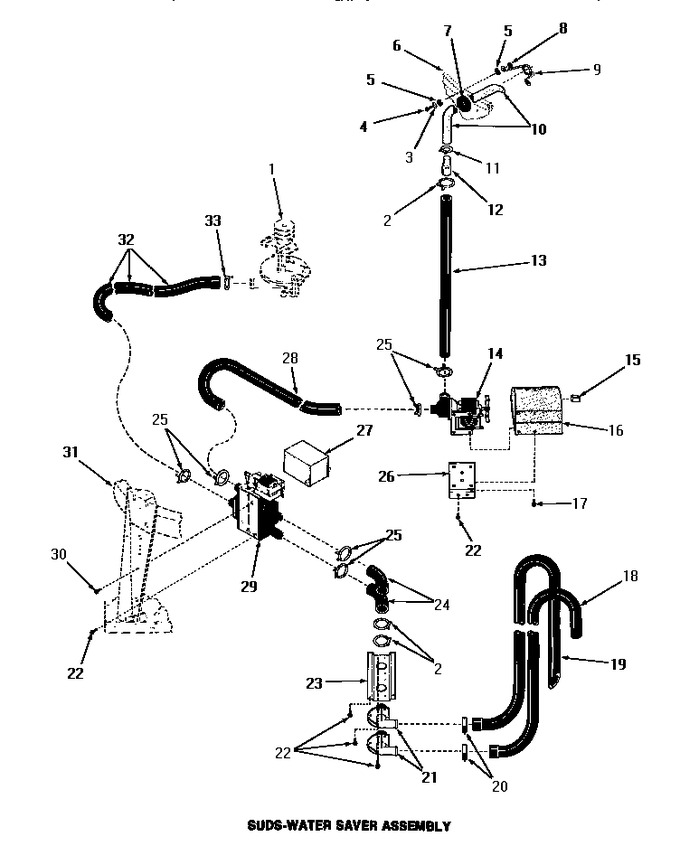

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00000000		See Note Pump Assembly		Appelez-nous	-
2	Y03698		Clamp Xreplace		Appelez-nous	-
3	20492		Washer		Appelez-nous	-
4	21081		Screw,10-24 X 1/2 Rd H				$ 33.49
5	02928		Washer		Appelez-nous	-
6	Y00000000		See Note Drain Tub		Appelez-nous	-
7	20118		Grommet,1982 Inv		Appelez-nous	-
8	21080		Nut		Appelez-nous	-
9	22355		Return Hose Support		Appelez-nous	-
10	22356		Suds-water Return Hose		Appelez-nous	-
11	Y22671		Hose Clamp		Appelez-nous	-
12	21086		Code J		Appelez-nous	-
13	26982		Pump Outlet Return Hose		Appelez-nous	-
14	269985		Motor And Pump Assembly		Appelez-nous	-
15	23258		Pad,bumper		Appelez-nous	-
16	26988		Shield		Appelez-nous	-
17	52150		Screw, Thermostat		Appelez-nous	-
18	20240		Hose,m/f 29219		Appelez-nous	-
19	22627		Hose		Appelez-nous	-
20	WP285655		Clamp, Hose   (Replaces: 20211)			Immediately	$ 7.55
21	23553		Elbow,drain Hose-plast				$ 11.23
22	51784		Screw,10b-16 X 1/2 Hex		Appelez-nous	-
23	23560		Bracket		Appelez-nous	-
24	23845		Tee-to-elbow Hose		Appelez-nous	-
25	21372		Hose Clamp		Appelez-nous	-
26	DE81-06295A		Mounting Bracket   (Replaces: 26981)				$ 64.04
27	26053		Shield		Appelez-nous	-
28	DE81-05796A		Valve-to-pump Hose   (Replaces: 26052)				$ 48.91
29	23848		Valve		Appelez-nous	-
30	WP27001200		Hex Head Scrw   (Replaces: 25723)				$ 6.91
31	Y00000000		See Note Chassis		Appelez-nous	-
32	24575		No Longer Available		Appelez-nous	-
33	20210		No Longer Available		Appelez-nous	-
