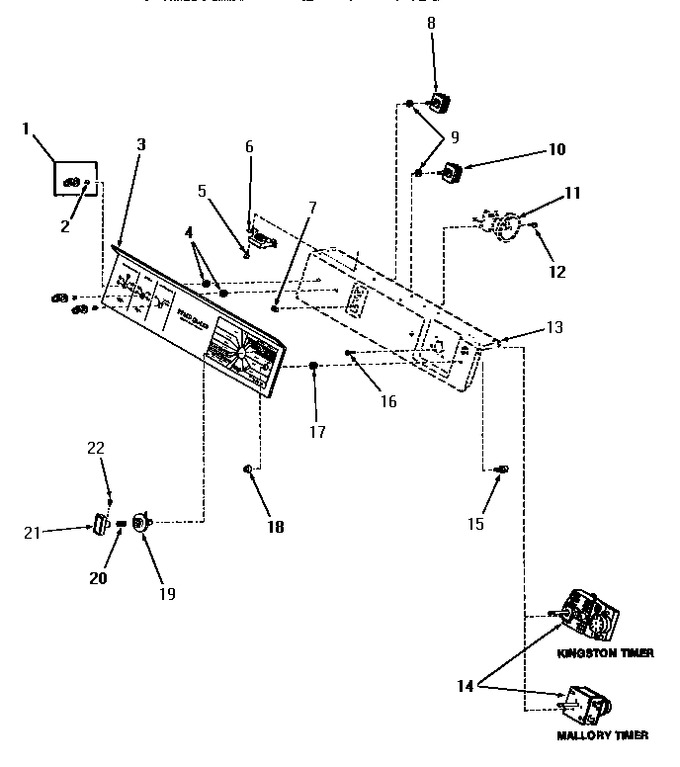

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	26816		Assy,knob-switch		Appelez-nous	-
2	23392		Clip For 26816 Knob		Appelez-nous	-
3	24785		Control Panel   (Replaces: 26785)			Immediately	$ 56.93
4	24391		Knurled Nut		Appelez-nous	-
5	WP3177991		Screw, 8b-18 X 1/4 He   (Replaces: 23222)			Immediately	$ 6.47
6	21975		Ballast		Appelez-nous	-
7	24522		Nut,speed-8ab-18 C1995		Appelez-nous	-
8	24392		Switch Temp		Appelez-nous	-
9	91176		Lockwasher,3/8 Intshkp				$ 1.44
10	24431		Speed Switch		Appelez-nous	-
11	Y00000000		See Note Pressure Switch		Appelez-nous	-
12	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.04
13	Y00000000		See Note Panel Support Plate		Appelez-nous	-
14	26411		Timer		Appelez-nous	-
15	23401		Switch		Appelez-nous	-
16	70212		Screw,8-32 X 5/32 Rd H		Appelez-nous	-
17	23400		Ferrule		Appelez-nous	-
18	23399		Switch Collar		Appelez-nous	-
19	26326		Timer Knob Indicator		Appelez-nous	-
20	26319		Spring		Appelez-nous	-
21	DE81-07115A		Knob,timer Xreplace   (Replaces: 26798)				$ 111.29
22	26318		Screw,8-32 X 1/4 Set S		Appelez-nous	-
