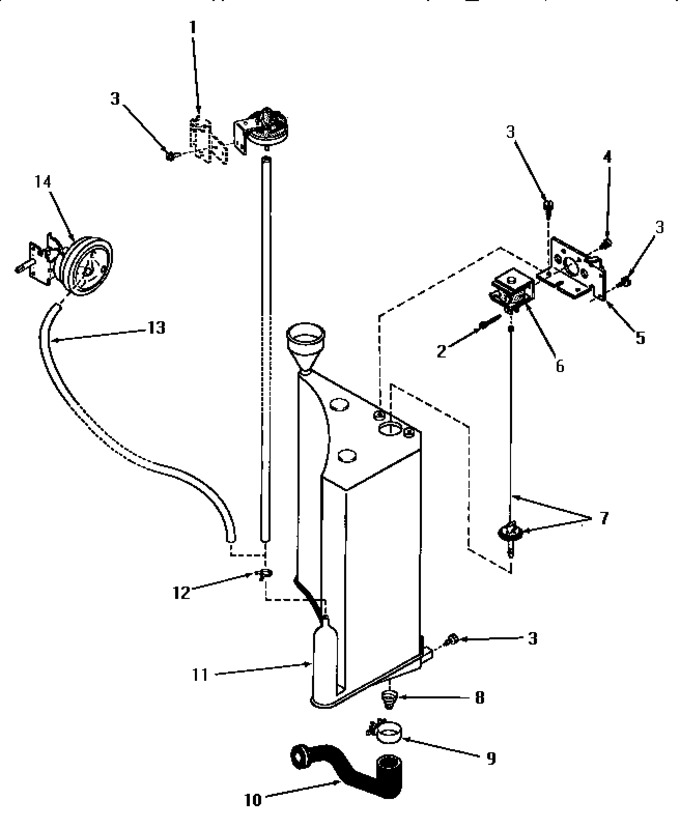

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00000000		See Note Top Hold-down Bracket, Left-front		Appelez-nous	-
2	20248		Pin,cotter		Appelez-nous	-
3	51784		Screw,10b-16 X 1/2 Hex		Appelez-nous	-
4	Y03950		Screw,10-32x5/16 Sems		Appelez-nous	-
5	Y26000		Bracket		Appelez-nous	-
6	25999		Solenoid,drain Valve		Appelez-nous	-
7	26244		Assy,plunger-drain Val		Appelez-nous	-
8	25997		Spring,drain Valve		Appelez-nous	-
9	20824		Hose Clamp		Appelez-nous	-
10	25998		Hose,drain-pressure Ta		Appelez-nous	-
11	25993		Reservoir		Appelez-nous	-
12	WP596669		Hose Clamp   (Replaces: Y22294)			Immediately	$ 7.56
13	24444		No Longer Available		Appelez-nous	-
14	26051		Switch,pressure		Appelez-nous	-
