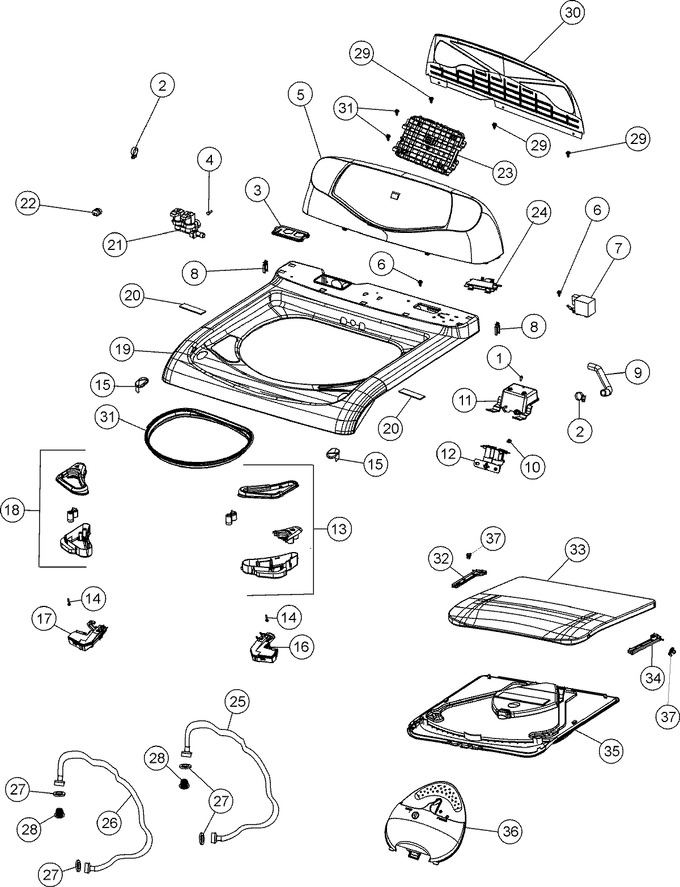

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y310632 | Screw | 10 |
|
- | ||||
| 2 | WP489503 | Clamp - 15/16`` (Replaces: 205161) | 10 |
|
Immediately | $ 9.68 | |||
| 3 | 25001026 | Hole Plug - Water Valve | 10 |
|
- | ||||
| 4 | WPY014874 | Screw (Replaces: Y014874) | 10 |
|
$ 6.98 | ||||
| 5 | 25001123 | Led Consols Assy (bsq) | 10 |
|
- | ||||
| 5 | 25001207 | Led Console Assy (bsq Aspk) | 13 |
|
$ 230.80 | ||||
| 5 | 25001220 | Membrane Switch | 17 |
|
- | ||||
| 6 | WP489128 | Screw, Serrated Washer Head Hx (Replaces: 22003817) | 10 |
|
$ 9.79 | ||||
| 7 | 25001031 | Emi Filter (line) | 10 |
|
- | ||||
| 8 | 22003298 | Retainer, Wire | 10 |
|
$ 7.71 | ||||
| 9 | 25001045 | Hose, H2o Valve To Disp Valve | 10 |
|
$ 6.81 | ||||
| 10 | WP9740848 | Screw (Replaces: 22002300) | 10 |
|
Immediately | $ 7.07 | |||
| 11 | 25001023 | Bracket, Disp Valve Mtg. | 10 |
|
- | ||||
| 12 | 25001043 | Valve, Dispenser | 10 |
|
$ 85.63 | ||||
| 13 | 12002563 | Softener Dispenser Kit (bsq) | 15 |
|
- | ||||
| 13 | 12002198 | Softener Dispenser Kit-bsq | 10 |
|
- | ||||
| 14 | 25001028 | Screw, No.6 X 3/4 Plastite | 10 |
|
- | ||||
| 15 | 25001035 | Bumper | 10 |
|
- | ||||
| 16 | 25001037 | Lid Lock (r.h.) | 10 |
|
$ 117.23 | ||||
| 16 | 25001024 | Lid Lock Magnet | 10 |
|
$ 5.84 | ||||
| 17 | 25001024 | Lid Lock Magnet | 10 |
|
$ 5.84 | ||||
| 17 | 25001048 | Lid Lock (l.h.) | 10 |
|
$ 117.72 | ||||
| 18 | 12002200 | Bleach Dispenser Kit - Bsq | 10 |
|
- | ||||
| 18 | 12002566 | Bleach Dispenser Kit (bsq) | 15 |
|
- | ||||
| 19 | 25001177 | Top Cover As Pack (bsq) | 10 |
|
- | ||||
| 20 | 25001004 | Clip, Upper Harness | 10 |
|
- | ||||
| 21 | 25001046 | Valve, Water Inlet | 10 |
|
- | ||||
| 22 | 211881 | Grommet, Cord | 10 |
|
- | ||||
| 23 | 25001188 | Led Machine Control Board Assy | 11 |
|
- | ||||
| 23 | 25001001 | Control Board / Led Ntl | 10 |
|
- | ||||
| 24 | 25001025 | Hole Plug - Wire Harness | 10 |
|
- | ||||
| 25 | WP89503 | Hose, 4` Inlet (Replaces: 33-7891) | 10 |
|
Immediately | $ 21.68 | |||
| 26 | 21001316 | Hose, Inlet (hot) | 10 |
|
$ 26.34 | ||||
| 27 | Y013783 | Gasket, Inlet Hose | 10 |
|
$ 18.72 | ||||
| 28 | 22002960 | Strainer, Washer Inlet | 10 |
|
$ 5.70 | ||||
| 29 | WP489128 | Screw (Replaces: 22002925) | 10 |
|
$ 9.79 | ||||
| 30 | 25001047 | Panel, Console Back | 10 |
|
- | ||||
| 31 | 25001021 | Screw, No.8-16 Truss Hd | 10 |
|
- | ||||
| 31 | 25001179 | Splash Guard | 10 |
|
$ 89.59 | ||||
| 32 | 25001038 | Retainer, Lid Hinge (l.h.) | 10 |
|
- | ||||
| 33 | 25001118 | Lid - Bsq - As Pk | 10 |
|
- | ||||
| 34 | 25001027 | Retainer, Lid Hinge (r.h.) | 10 |
|
- | ||||
| 35 | 25001085 | Inner Lid W`seal (bsq As Pk) | 10 |
|
- | ||||
| 36 | 25001174 | Detergent Disp. Assy. (bsq) | 10 |
|
- | ||||
| 37 | 22002753 | Bushing, Hinge | 10 |
|
$ 5.84 |
