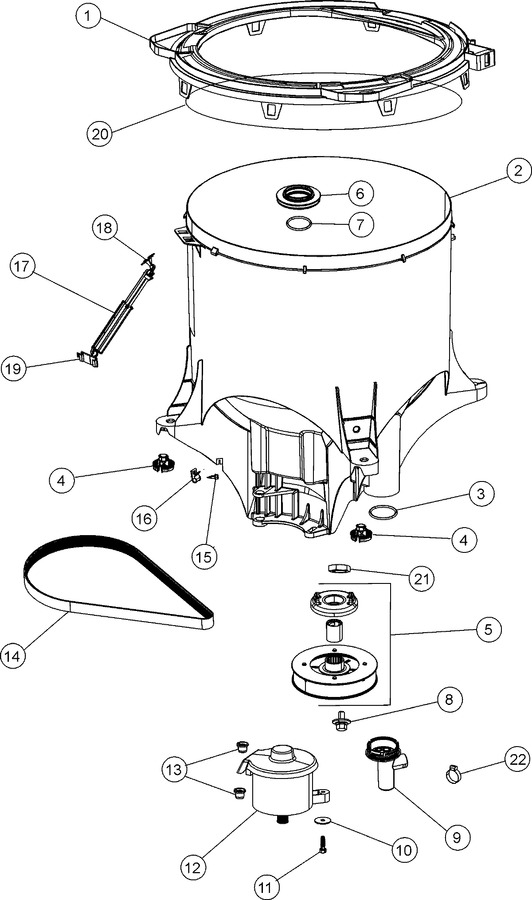

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 25001030 | Tub Cover As Pack | 10 |
|
$ 146.18 | ||||
| 1 | 25001224 | Tub Cover As Pack | 17 |
|
- | ||||
| 2 | 25001081 | Outer Tub Assy (as Pk) | 10 |
|
- | ||||
| 2 | 25001199 | Outer Tub Assembly As Pack | 12 |
|
$ 1,107.06 | ||||
| 3 | 25001096 | O-ring, Tub Outlet | 10 |
|
$ 5.70 | ||||
| 4 | 25001139 | Base Strut Assy | 10 |
|
$ 141.54 | ||||
| 5 | 25001044 | Screw, 1/4 - 20 Shoulder Bolt | 10 |
|
- | ||||
| 5 | 12002211 | Pulley & Clutch Assy - As Pk | 10 |
|
$ 269.25 | ||||
| 5 | 25001169 | Assembly; Clutch | 12 |
|
$ 231.86 | ||||
| 6 | 25001090 | Tub Seal | 10 |
|
$ 25.14 | ||||
| 7 | 25001096 | O-ring, Tub Outlet | 10 |
|
$ 5.70 | ||||
| 8 | 25001099 | Bolt, Sems 1/4 X.5 | 10 |
|
- | ||||
| 9 | 25001029 | Sump Cap (led) | 10 |
|
- | ||||
| 10 | 22004306 | Washer, Hardened | 10 |
|
- | ||||
| 11 | 22003686 | Bolt, Motor | 10 |
|
$ 6.14 | ||||
| 12 | 25001034 | Motor, Variable Speed | 10 |
|
$ 293.84 | ||||
| 12 | 25001222 | Motor | 17 |
|
- | ||||
| 13 | 22003329 | Isolator, Motor | 10 |
|
$ 36.83 | ||||
| 14 | 25001054 | Belt, Stretch | 10 |
|
$ 37.94 | ||||
| 15 | 25001021 | Screw, No.8-16 Truss Hd | 10 |
|
- | ||||
| 16 | 25001017 | ``p`` Clip | 10 |
|
- | ||||
| 17 | 12002194 | Tub Displacement Sensor Kit | 10 |
|
$ 154.31 | ||||
| 18 | 25001181 | Outer Tub Sensor Clip | 10 |
|
- | ||||
| 19 | 25001182 | Cabinet Sensor Clip | 10 |
|
$ 27.46 | ||||
| 20 | 25001180 | Tub Cover Seal | 10 |
|
$ 7.00 | ||||
| 21 | 25001036 | Jam Nut | 10 |
|
$ 32.28 | ||||
| 22 | WP285655 | Clamp, Drain Hose (Replaces: 22001984) | 10 |
|
Immediately | $ 7.55 |
