SELECT A DIAGRAM

01 - Cover


03 - Freezer Door


05 - Refrigerator Door


07 - Cabinet

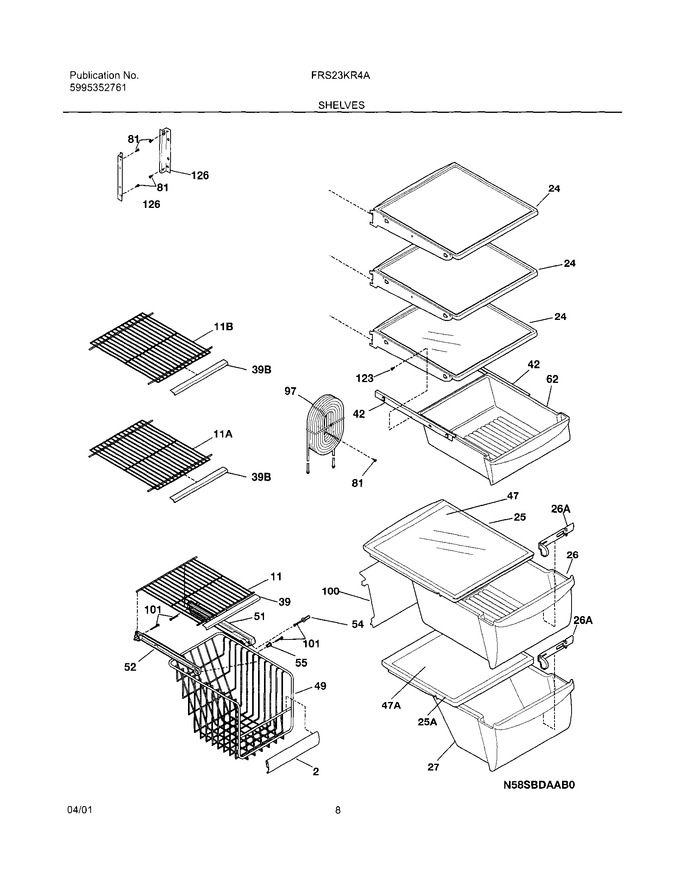

09 - Shelves


11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	240434601		Trim-basket		Appelez-nous	-
11	5304532465		Shelf-freezer,fixed Wire   (Replaces: 240338701)				$ 54.10
11	240338703		Shelf-freezer,fixed Wire		Appelez-nous	-
11	241657601		Shelf-freezer,flip-up   (Replaces: 240338801)				$ 79.48
24	240355211		Shelf-``spill-safe``,fixed				$ 224.07
25	240354502		Cover-crisper Pan,upper   (Replaces: 240354501)			Immediately	$ 100.02
25	240354602		Cover-crisper Pan,lower   (Replaces: 240354601)			Immediately	$ 88.46
26	240354723		Pan-crisper,upper   (Replaces: 240354705)			Immediately	$ 164.31
26	240351101		Control-humidity			Immediately	$ 43.95
27	240354805		Pan-crisper,lower				$ 167.69
39	240430705		Trim-shelf,front				$ 60.43
39	240430701		Trim-shelf,front				$ 69.30
42	240356501		Hanger-meat Pan,rh			Immediately	$ 56.70
42	240365401		Hanger-meat Pan,white ,lh			Immediately	$ 51.26
47	240350614		Insert-pan Cover,glass				$ 145.60
47	240350613		Insert-pan Cover,glass   (Replaces: 240350635)				$ 123.62
49	240338401		Basket-sliding		Appelez-nous	-
51	240343001		Hanger-basket,rh		Appelez-nous	-
52	240343101		Hanger-basket,lh		Appelez-nous	-
54	240351901		Plug-hanger,right Hand		Appelez-nous	-
55	240352001		Plug-hanger,left Hand		Appelez-nous	-
62	240355527		Pan-meat   (Replaces: 240355506)				$ 184.06
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
97	240453002		Water Tank Assy,with Tubes		Appelez-nous	-
100	240326303		Cover-water Tank   (Replaces: 240326301)				$ 61.28
101	218493101		Screw,hex Washer Head `8-18ab X 1-3/4   (Replaces: 218493100)				$ 13.46
123	215005101		Screw-roller/hanger`8-10 X 0.438   (Replaces: 215005100)				$ 14.89
126	218867402		Channel`auger Mtg ,rh		Appelez-nous	-
126	218867401		Channel,auger Mtg ,lh		Appelez-nous	-
NI	240362101		Clip-slide,cover-crisper				$ 47.03
NI	240349801		Clip-slide,pan-crisper				$ 20.48

    View Diagram in Separate Window       Print Part List
