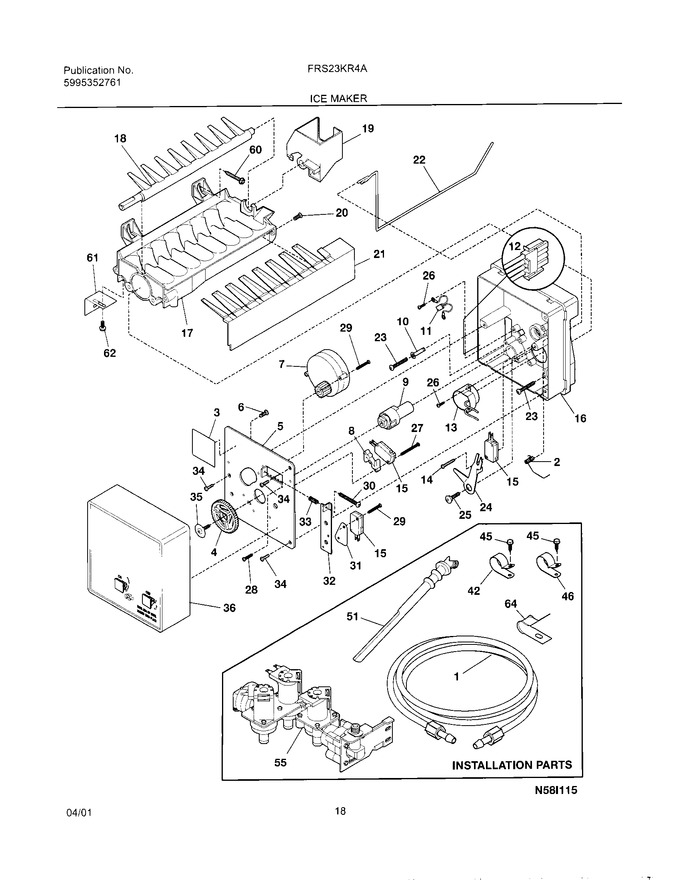

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976901		Tube-water Inlet,inlet Valve ,			Immediately	$ 81.50
2	5304420650		Spring,shut-off Arm		Appelez-nous	-
3	3206299		Label,id Plate		Appelez-nous	-
4	3206301		Gear		Appelez-nous	-
5	3206303		Plate-mounting				$ 47.41
6	3206305		Screw-ground Wire,8-32 X 0.250		Appelez-nous	-
7	5303918277		Motor-ice Maker   (Replaces: 3206306)			Immediately	$ 96.11
8	3206312		Spacer-hold Switch		Appelez-nous	-
9	3206313		Cam		Appelez-nous	-
10	3206315		Clamp				$ 35.33
11	3206319		Thermal Cutoff,ice Maker ,complete Assy				$ 48.72
12	240352601		Wiring Harness,ice Maker ,internal ,		Appelez-nous	-
13	3206322		Thermostat Assy,ice Maker				$ 130.41
14	5304420652		Screw,4 X 3/4 ,switch Mtg.		Appelez-nous	-
15	5304456667		Switch,(3)   (Replaces: 3206324)				$ 92.53
16	5304420653		Support,phenolic		Appelez-nous	-
17	241798231		Mold-ice Maker, Radius Cube, With Heater   (Replaces: 5303320545)			Immediately	$ 200.97
18	3206328		Ejector-ice		Appelez-nous	-
19	3206330		Bearing & Inlet		Appelez-nous	-
20	5304408581		Screw,8-32 X 0.375		Appelez-nous	-
21	3206332		Ice Stripper		Appelez-nous	-
22	3206333		Shut-off Arm		Appelez-nous	-
23	5304408582		Screw,8-32 X 0.875 ,mold-to-support ,		Appelez-nous	-
24	5304456675		Lever-arm   (Replaces: 3206335)				$ 66.63
25	3206336		Screw,8-18 X 0.562 ,lever Arm/sprt		Appelez-nous	-
26	5304420654		Screw-thermo/sprt`4-24 X 0.375 `(4)		Appelez-nous	-
27	3206338		Screw,4-40 X 1.000 ,hold Switch Mtg ,		Appelez-nous	-
28	3206339		Screw-timing Stop`4-40 X 0.375		Appelez-nous	-
29	3206323		Screw,4-24 X 0.750 ,(6)		Appelez-nous	-
30	3206341		Screw-timing Adj,8-32 X 1.000		Appelez-nous	-
31	3206342		Insulator		Appelez-nous	-
32	3206343		Plate-valve Switch		Appelez-nous	-
33	5304408583		Spring-timing Adj		Appelez-nous	-
34	5304420655		Screw,plazcrew `8-10 ,(3)		Appelez-nous	-
35	5304408585		Screw		Appelez-nous	-
36	3206347		Cover-ice Maker				$ 29.24
42	218515402		Clip,(2) ,tube Mtg.		Appelez-nous	-
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
46	5303001193		Clamp,.50 Id ,steel ,water Tube				$ 16.30
51	241796405		Tube-water,ice Mold Fill ,extension   (Replaces: 240387101)				$ 18.43
55	242252702		Valve-water,triple Solenoid   (Replaces: 240321801)			Immediately	$ 132.71
60	5304455852		Screw, Hex Washer Head, 8-15a X 1.000   (Replaces: 5303207328)				$ 12.76
61	218721500		Bracket-leveling, Ice Maker				$ 73.00
62	218737900		Screw-im Brkt Mtg,hex Washer Head ,		Appelez-nous	-
64	5304455846		Clamp,0.31 Id ,steel ,copper Wtr Line   (Replaces: 5303001549)				$ 10.63
NI	240363602		Screw-shoulder   (Replaces: 240363601)				$ 13.65
NI	240542901		Cap-water Valve   (Replaces: 218873001)				$ 18.95
NI	5303001199		Clamp				$ 65.92
NI	218976904		Tube-water Inlet,valve To Filter				$ 110.57
NI	218976907		Tube-water Inlet,valve To Door				$ 67.73
NI	218888001		Adapter-water Sply				$ 63.42
NI	5303918277		Ice Maker,radius Cube ,115 V ,   (Replaces: 240352403)			Immediately	$ 96.11
