01 - Body
02 - Control Panel
03 - Door/drawer
04 - Oven/base
05 - Top Assembly
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

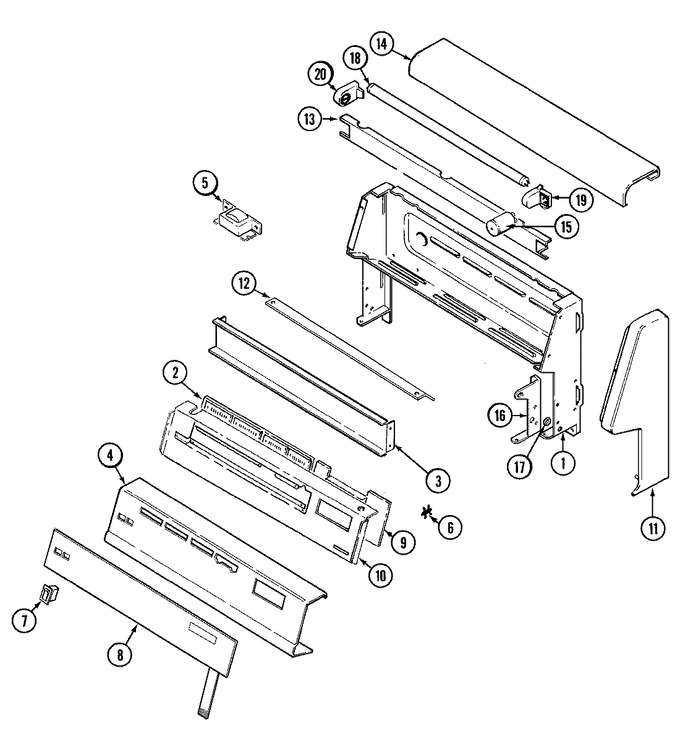

| 1 | 74002162 | Housing, Control Panel | 12 |
|
- | ||||
| 2 | 74002175 | Support, Led | 12 |
|
- | ||||
| 2 | 74002174 | Board, Led | 12 |
|
- | ||||
| 3 | 3802F088-51 | Brace, Control Panel | 12 |
|
- | ||||
| 4 | WPY706189 | Screw (8abx3/8-blk) (Replaces: 7101P347-60) | 12 |
|
Immediately | $ 6.47 | |||
| 4 | 74002166 | Panel, Control (blk) | 12 |
|
- | ||||
| 5 | 74003033 | Ballast | 22 |
|
- | ||||
| 5 | 7412P007-60 | Ballast | 12 |
|
- | ||||
| 6 | 8004P035-60 | Support, Clock | 12 |
|
- | ||||
| 7 | 7403P309-60 | Switch, Rocker (blk) | 12 |
|
- | ||||
| 8 | 74002171 | Switch, Membrane (blk) | 12 |
|
- | ||||
| 9 | 74002173 | Clock Nla -contact Parts Admin | 12 |
|
- | ||||
| 10 | 74002099 | Bracket, Clock | 12 |
|
- | ||||
| 11 | 74002035 | End Cap (rt-blk) | 12 |
|
- | ||||
| 11 | 74002036 | End Cap (lt-blk) | 12 |
|
- | ||||
| 12 | 3604F201-80 | Shield, Sight | 12 |
|
- | ||||
| 12 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 12 |
|
Immediately | $ 12.62 | |||
| 13 | 3807F406-71 | Holder, Lamp (wht) | 12 |
|
- | ||||
| 14 | 74002042 | Cover, Backguard (blk) | 12 |
|
- | ||||
| 15 | 7415P001-60 | Starter | 12 |
|
- | ||||
| 16 | 3807F454-51 | Support, Main Top (lt) | 12 |
|
- | ||||
| 16 | 3807F453-51 | Support, Main Top (rt) | 12 |
|
- | ||||
| 17 | WP3195558 | Nut, Speed (Replaces: 7103P044-60) | 12 |
|
$ 7.68 | ||||
| 18 | WP95292 | Light, Control Panel (Replaces: 7407P004-60) | 12 |
|
Immediately | $ 121.45 | |||
| 19 | 7408P029-60 | Receptacle, Light (rt) | 12 |
|
- | ||||
| 19 | 74002824 | Cover, Receptacle Wires | 29 |
|
- | ||||
| 20 | 74002824 | Cover, Receptacle Wires | 29 |
|
- | ||||
| 20 | 7408P030-60 | Receptacle, Snap-in (lt) | 12 |
|
- | ||||
| 21 | 74002147 | Harness, Burner Box | 12 |
|
- | ||||
| 21 | 5195D082-60 | Harness, Door Latch | 12 |
|
- | ||||
| 21 | 5170P205-60 | Harness, Sensor/lock | 12 |
|
- | ||||
| 21 | 74003140 | Harness, Control Panel | 12 |
|
- | ||||
| 21 | 74001603 | Harness, Wire Door Switch | 12 |
|
- | ||||
| 22 | 16007479 | Manual, Use & Care | 12 |
|
- | ||||
| 23 | 16000326 | Guide, Quick Ref - Jenn-air | 12 |
|
- |
