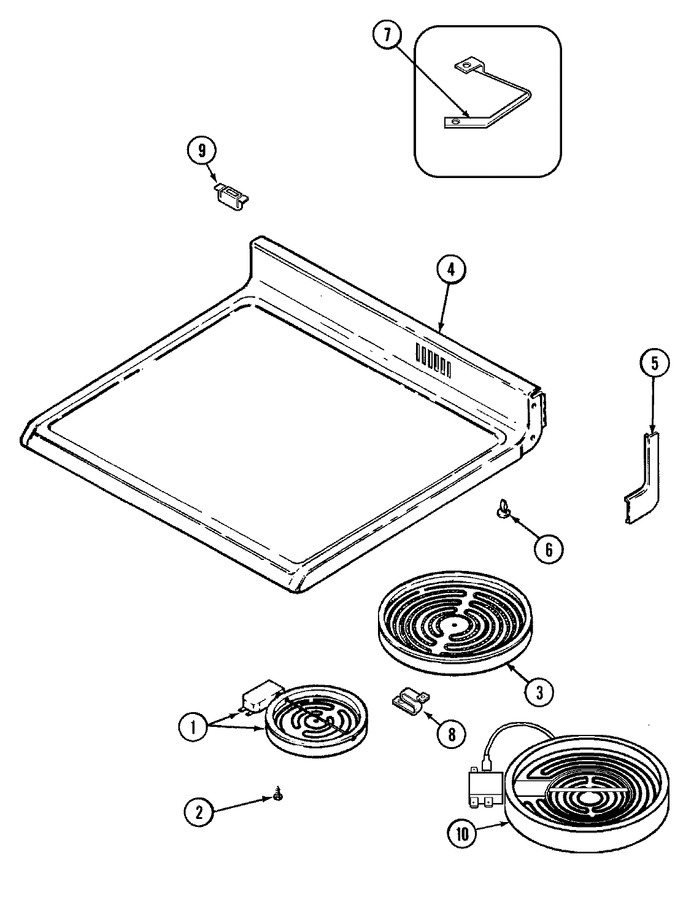

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10823704		Element W/limiter (6``)   (Replaces: 74002653)	15		Immediately	$ 309.01
1	W10823704		Element W/limiter (6``)   (Replaces: 74001011)	12		Immediately	$ 309.01
1	W10823704		Limiter (6``)   (Replaces: 74002651)	15		Immediately	$ 309.01
1	Y04000064		Limiter (6`` Element)	12	Appelez-nous	-
2	WP74004005		Screw   (Replaces: 7101P349-60)	12			$ 6.95
3	Y04000063		Limiter (8`` Element)	12	Appelez-nous	-
3	W10823707		Element W/limiter (8``)   (Replaces: 74002649)	15		Immediately	$ 316.13
3	W10823707		Element W/limiter (8``)   (Replaces: 74001012)	12		Immediately	$ 316.13
3	74002652		Limiter (8``)	15	Appelez-nous	-
4	74002150		Top, Main Glass Assy. (blk)	12	Appelez-nous	-
4	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	12		Immediately	$ 12.62
4	74003100		Top, Main (blk Glass/blk Top)	24	Appelez-nous	-
5	WP3195558		Nut, Speed   (Replaces: 7103P044-60)	12			$ 7.68
5	7746P031-60		End Cap (lt-blk)	12			$ 26.25
5	7746P030-60		End Cap (rt-blk)	12			$ 26.16
6	74001428		Spacer, Main Top	12	Appelez-nous	-
7	74001437		Spring, Ceramic Element	12	Appelez-nous	-
7	W10124350		Not Required Part Or See Note	24	Appelez-nous	-
8	74003072		Support, Ceramic Element	24	Appelez-nous	-
9	74003053		Light, Indicator	24	Appelez-nous	-
10	W10823703		Element, Ceran. Dual   (Replaces: 74002666)	15		Immediately	$ 204.99
10	W10823703		Element, Dual Ceran (lg)   (Replaces: 74002151)	12		Immediately	$ 204.99
10	74002667		Limiter	15	Appelez-nous	-
10	74002176		Limiter (dual)	12	Appelez-nous	-
11	CERAMABRYTE		Cleaner, Elco   (Replaces: 8308P002-60)	12		Immediately	$ 9.95
11	WA906B		Scraper, Razor   (Replaces: 8312P001-60)	12		Immediately	$ 4.86
