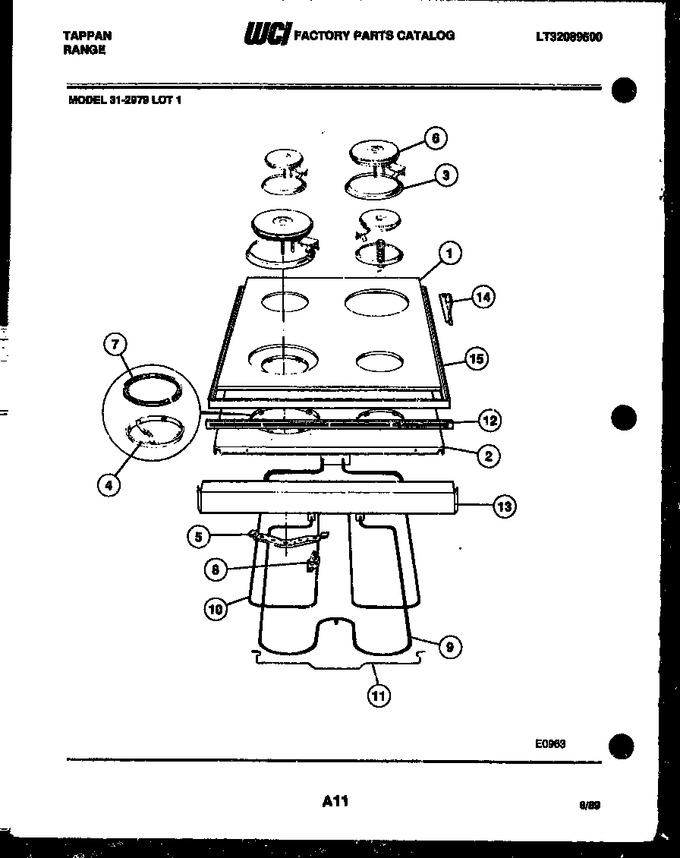

02 - Cooktop And Broiler Parts
03 - Body Parts
04 - Backguard
05 - Drawer Parts
06 - Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3204831 | Glass - Main Top |
|
- | |||||
| 2 | 3204833 | Panel - Glass Support |
|
- | |||||
| 3 | 3051334 | Trim-ring Outer Sm (2) |
|
- | |||||
| 4 | 3051337 | Trim-ring Inner Sm (2) |
|
- | |||||
| 5 | 3051121 | Channel-top Element Mtg Med (2) |
|
- | |||||
| 6 | 3051142 | Element - Top Sm (2) |
|
- | |||||
| 7 | 3018330 | Seal-top Element Small (2) |
|
- | |||||
| 7 | 3018331 | Seal-top Element |
|
- | |||||
| 8 | 3051885 | Switch-thermal Protector (4) |
|
- | |||||
| 9 | 316075103 | Element-bake (Replaces: 3203534) |
|
Immediately | $ 42.36 | ||||
| 10 | 3051140 | Element, Broil |
|
- | |||||
| 11 | 3051373 | Support-broil Element |
|
- | |||||
| 12 | 355T377S01 | Trim-main Top Front |
|
- | |||||
| 13 | 3204771 | Panel - Manifold |
|
- | |||||
| 14 | 3131286 | Brkt Main Top Hng Lh |
|
- | |||||
| 15 | 3204834 | Trim-main Top Frame |
|
- | |||||
| *25572 | 3051196 | Nut - Element Mtg |
|
- | |||||
| *25573 | 3131386 | Fastener - Push Nut (5) |
|
- | |||||
| 14A | 3131287 | Brkt Main Top Hng Rh |
|
- | |||||
| 3A | 3051335 | Trim-ring Outer Med (2) |
|
- | |||||
| 4A | 3051338 | Trim-ring Inner Med (2) |
|
- | |||||
| 5A | 3051122 | Channel-top Element Mtg Sm (2) |
|
- | |||||
| 6A | 3204830 | Element - Top Med (2) |
|
- |
