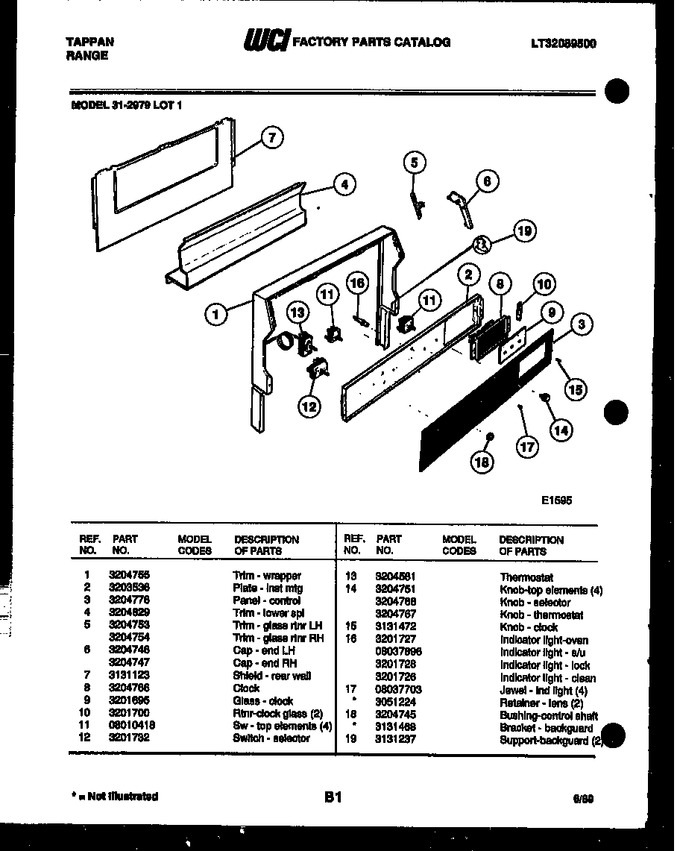

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Cooktop And Broiler Parts
03 - Body Parts
04 - Backguard
05 - Drawer Parts
06 - Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3204755 | Trim, Wrapper |
|
- | |||||
| 2 | 3203536 | Plate - Inst. Mtg |
|
- | |||||
| 3 | 3204776 | Panel - Control |
|
- | |||||
| 4 | 3204829 | Trim - Lower Spl |
|
- | |||||
| 5 | 3204753 | Trim-glass Rtnr Lh |
|
- | |||||
| 6 | 3204746 | Cap-end Lh |
|
- | |||||
| 7 | 3131123 | Shield, Rear Wall |
|
- | |||||
| 8 | 3204766 | Clock |
|
- | |||||
| 9 | 3201695 | Glass - Clock |
|
- | |||||
| 10 | 3201700 | Rtnr-clock Glass (2) |
|
- | |||||
| 11 | 08010418 | Switch-top Elements (4) |
|
- | |||||
| 12 | 3201732 | Switch-selector |
|
- | |||||
| 13 | 3204581 | Thermostat |
|
- | |||||
| 14 | 3204751 | Knob-top Elements (4) |
|
- | |||||
| 15 | 3131472 | Knob-clock |
|
- | |||||
| 16 | 3201727 | Indicator Light - Oven |
|
- | |||||
| 17 | 08037703 | Lens |
|
- | |||||
| 18 | 3204745 | Bushing, Control Shaft |
|
- | |||||
| 19 | 3131237 | Support-backguard (2) |
|
- | |||||
| 14A | 3204768 | Knob - Selector |
|
- | |||||
| 14B | 3204767 | Knob-thermostat |
|
- | |||||
| 16A | 08037896 | Indicator-light S/u |
|
- | |||||
| 16B | 3201728 | Indicator-light Lock |
|
- | |||||
| 16C | 3201726 | Indicator Light - Clean |
|
- | |||||
| 17A | 3051224 | Retainer-lens (2) (non-illustrated) |
|
- | |||||
| 18A | 3131468 | Bracket-backguard (non-illustrated) |
|
- | |||||
| 5A | 3204754 | Trim-glass Rtnr Rh |
|
- | |||||
| 6A | 3204747 | Cap-end Rh |
|
- |
