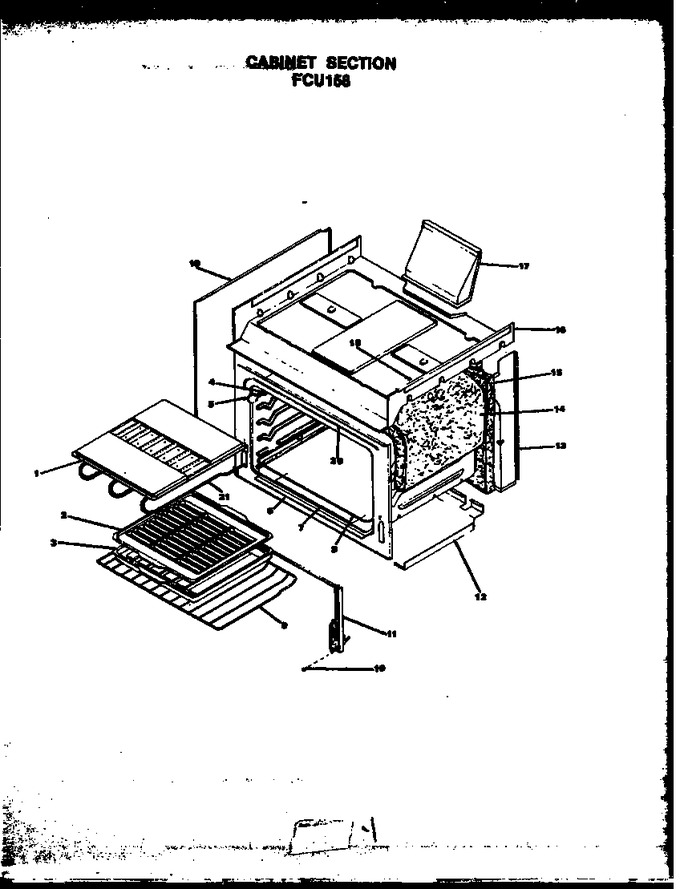

02 - Cabinet Section


03 - Mini Rail


04 - Page 1


05 - Range Top Section


06 - Standard Back Rail


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0040888		Broil Element Retainer Eu, Eo		Appelez-nous	-
1	Y0041428		Smoke Eliminator Assy Can Wo		Appelez-nous	-
1	0041798		Screw 8-18x.875 B Hx Hd		Appelez-nous	-
2	Y98882		Broiler Pan Insert		Appelez-nous	-
3	4396923		Broiler Pan   (Replaces: 11161)			Immediately	$ 52.04
4	73028		Fastener		Appelez-nous	-
5	Y0042175		Bulb, Light		Appelez-nous	-
6	Y0040638		Insulation Cover Eu&ei Japan		Appelez-nous	-
7	0040119		Sub 40119cg, Oven Bottom		Appelez-nous	-
8	0042136		Bake Element 1976 Req		Appelez-nous	-
9	0042703		Wire Rack-ov 25c-5m-10m		Appelez-nous	-
10	Y0041802		Screw		Appelez-nous	-
11	Y0041907		Hinge 1972 Ovens		Appelez-nous	-
12	Y0040639		Insulation Cover-bott Japan		Appelez-nous	-
13	40340		Cabinet Back, Upper		Appelez-nous	-
14	Y0041966		Insulation,wrapper		Appelez-nous	-
15	Y0041963		Sub 41966, Insulation 2x20x65		Appelez-nous	-
16	40459		Burner Box		Appelez-nous	-
17	0040570		Flue Box Crimp		Appelez-nous	-
18	Y0042007		Top Spacer		Appelez-nous	-
19	Y0040298		Cabinet Side, Rt., Black		Appelez-nous	-
19	40299		Cabinet Side, Lt.		Appelez-nous	-
20	0042399		Door Seal Assy Th&mh Odoor		Appelez-nous	-
21	WPY04000059		Element,broil   (Replaces: Y0042157)				$ 159.00
NI	42490		Grid		Appelez-nous	-
NI	41874		Thermostat Bulb Clip, Lower Ov		Appelez-nous	-
NI	Y0040653		Terminal Shield Lo-boy Jap		Appelez-nous	-
NI	40389		Code U		Appelez-nous	-
NI	Y0040895		Conduit Bracket T. H. Lo-boy		Appelez-nous	-
NI	Y0042491		Side Trim Left Eu-456 458		Appelez-nous	-
NI	0041024		Unit Support Brkt		Appelez-nous	-
NI	0041876		Door Seal Clips		Appelez-nous	-
NI	Y0040644		Orifice Access Cover		Appelez-nous	-
NI	Y00000000		See Note Broil Element Support		Appelez-nous	-
NI	Y0040731		Rear Wire Shield Lo-boys		Appelez-nous	-
