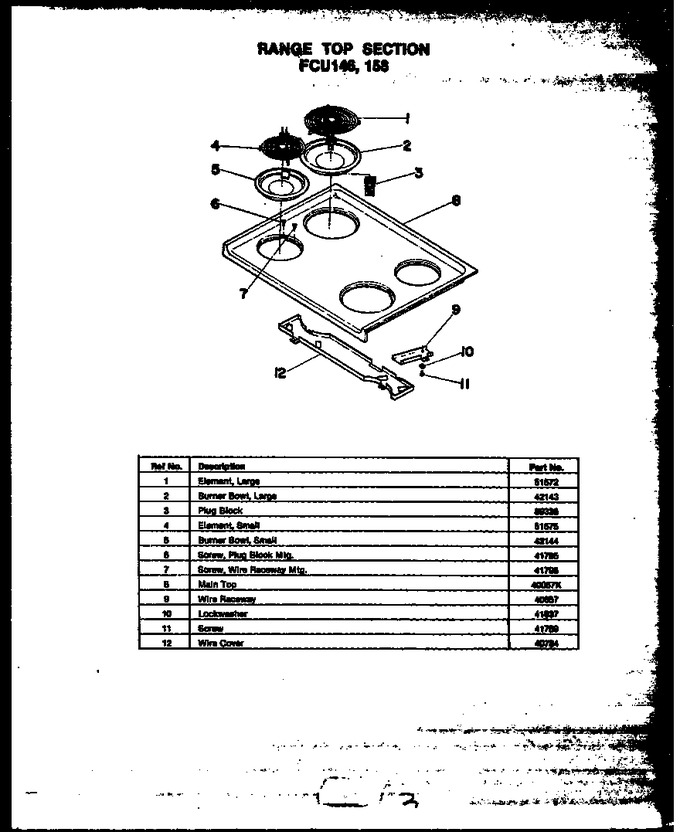

05 - Range Top Section


06 - Standard Back Rail


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3191454		Element, 5 Turn (2100w) 8``   (Replaces: Y0051572)				$ 163.63
2	WPW10196406		Bowl, Drip (6``-chr)   (Replaces: Y0042143)			Immediately	$ 12.05
3	330031		Kit, Top Element Term Block   (Replaces: Y0089336)			Immediately	$ 14.48
4	WP3191455		Surface Element, 6`` 240 V. 125   (Replaces: Y0051575)				$ 133.85
5	WPW10196405		Bowl, Drip (8``-chr)   (Replaces: Y0042144)			Immediately	$ 15.56
6	Y0041785		Screw, No.6-32 X .250 Pan Hd Ph		Appelez-nous	-
7	Y0041796		Metal Screw 6x3/8 Phil Pan Hd		Appelez-nous	-
8	40067K		Main Top		Appelez-nous	-
9	Y0040657		Wire Raceway		Appelez-nous	-
10	0041937		Washer Handle Mounting		Appelez-nous	-
11	Y0041789		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
12	0040784		Main Top Wire Cover		Appelez-nous	-
