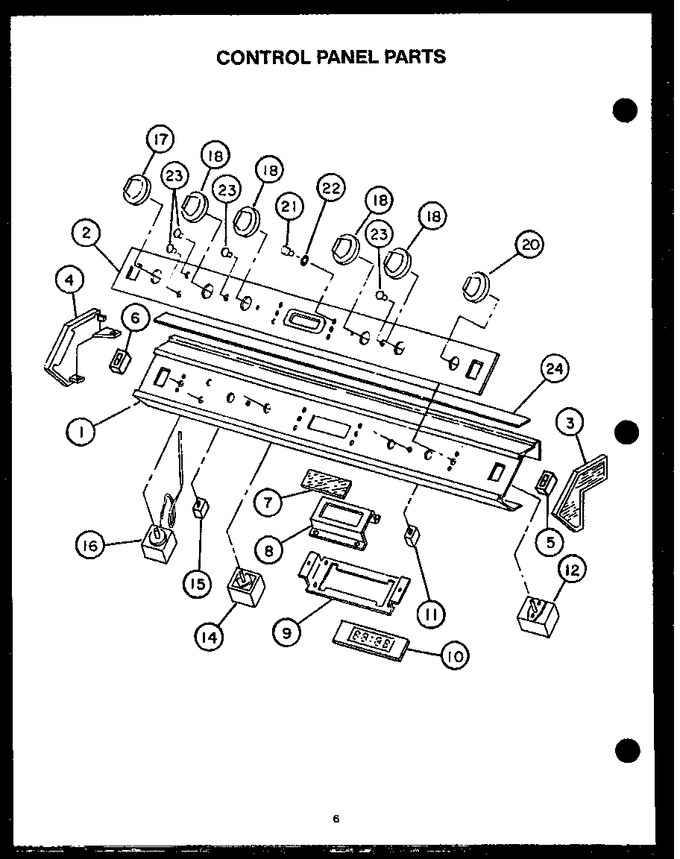

01 - Cabinet Assy


02 - Control Panel Parts


03 - Main Top And Oven Assy


04 - Oven Door Parts


05 - Page 1


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0302255		Control Panel		Appelez-nous	-
2	0303356		Inlay Control Panel		Appelez-nous	-
3	Y0302547		End Cap, Control Panel, Rh		Appelez-nous	-
4	Y0302546		End Cap L. H.		Appelez-nous	-
5	Y0300570		Switch,oven Light Xx Blk		Appelez-nous	-
6	0300569		Switch, On-off		Appelez-nous	-
7	0303159		Glass, Clock		Appelez-nous	-
8	0300622		Mounting Bracket, Glass		Appelez-nous	-
9	Y0300382		Mtg. Bracket, Clock		Appelez-nous	-
10	0301293		Display Board (clock)		Appelez-nous	-
11	0065822		Light Indicator		Appelez-nous	-
12	Y0063008		Switch, Selector		Appelez-nous	-
14	W11121639		Switch,inf(240p-1243)   (Replaces: Y0058773)				$ 149.17
15	0065822		Light Indicator		Appelez-nous	-
16	Y0063416		Thermostat		Appelez-nous	-
17	Y0303357		Knob, Oven Control		Appelez-nous	-
18	0300378		Knob, Top Element		Appelez-nous	-
20	0300379		Knob, Selector Switch, Black		Appelez-nous	-
21	Y0300614		Button, W/cushion		Appelez-nous	-
22	Y0301481		Bushing, Clock		Appelez-nous	-
23	Y0301208		Lens, Indicator Light, Red		Appelez-nous	-
24	0301131		Insert, Top Control Panel		Appelez-nous	-
NI	WP3400882		Screw, No.8-32 X 3/16 Pph   (Replaces: Y0041768)			Immediately	$ 6.47
NI	0302113		Filter, Amber		Appelez-nous	-
