SELECT A DIAGRAM

01 - Cabinet Assy


02 - Control Panel Parts


03 - Main Top And Oven Assy

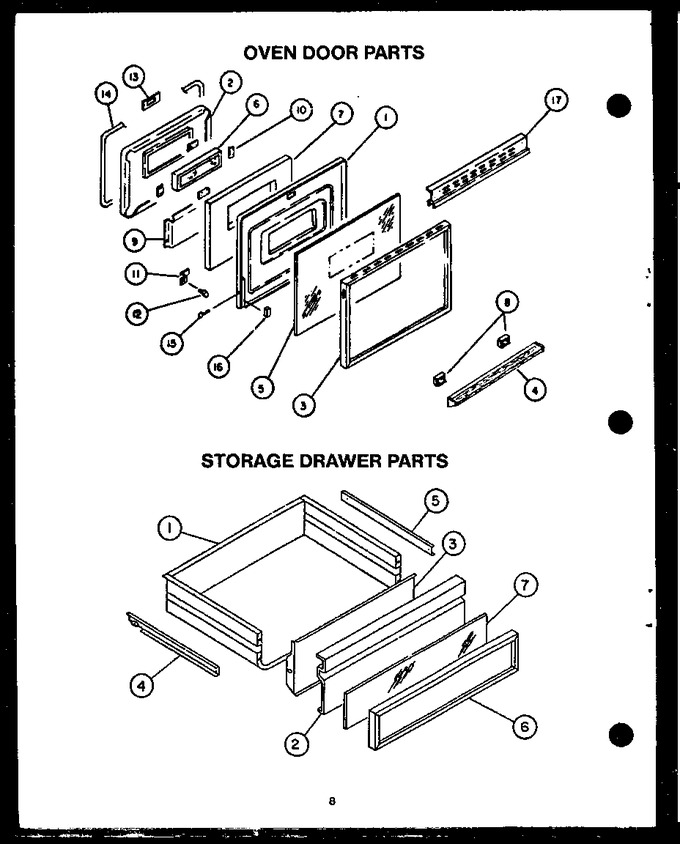

04 - Oven Door Parts


05 - Page 1


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	58922CG		Wrapper, Stor Drawer		Appelez-nous	-
1	Y00000000		See Note Backer, Oven Door		Appelez-nous	-
2	W10124799		Pad, Oven Door		Appelez-nous	-
2	059499B		Panel, Drawer		Appelez-nous	-
3	063804B		X Frame, Oven Door		Appelez-nous	-
3	Y00000000		See Note Liner, Drawer Panel		Appelez-nous	-
4	0068150		Handle, Door		Appelez-nous	-
4	Y0300476		Runner, Storage Door, L.h.		Appelez-nous	-
5	Y0300784		Glass, Oven Door		Appelez-nous	-
5	0300477		Runner, Storage Door R.h.		Appelez-nous	-
6	0041491		Window Assy		Appelez-nous	-
6	0059498		Door Panel Frame, Black		Appelez-nous	-
7	0062614		Insulation,door-sub Backer		Appelez-nous	-
7	Y0063501		Panel, Black Glass		Appelez-nous	-
8	Y0079978		Spacer Door Handle		Appelez-nous	-
9	301275B		Heat Baffle, Glass (black)		Appelez-nous	-
10	Y0052629		Retainer, Door Glass		Appelez-nous	-
11	Y0062439		Support Bracket, Glass		Appelez-nous	-
12	Y0063661		Bumper, Oven Door		Appelez-nous	-
13	Y0052039		Latch Plate		Appelez-nous	-
14	Y0300432		Gasket, Oven Dr 82``		Appelez-nous	-
15	Y0302648		Rivet, Pop		Appelez-nous	-
16	Y0060247		Bumper, Rubber		Appelez-nous	-
17	0302259		Trim, Oven Door		Appelez-nous	-
NI	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: Y0041809)			Immediately	$ 12.65
NI	WP488130		Nut K   (Replaces: Y0097886)				$ 6.27
NI	WPY706189		Metal Screw 8ax3/8 Ph Tr Bk   (Replaces: Y0041794)			Immediately	$ 6.47
NI	0302844		Screw No.8 18 X 1/2 Black		Appelez-nous	-
NI	0059574		Screw, Square		Appelez-nous	-
NI	Y0097822		Rivet, Pop		Appelez-nous	-
NI	Y0076357		Rivet, Pop		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
