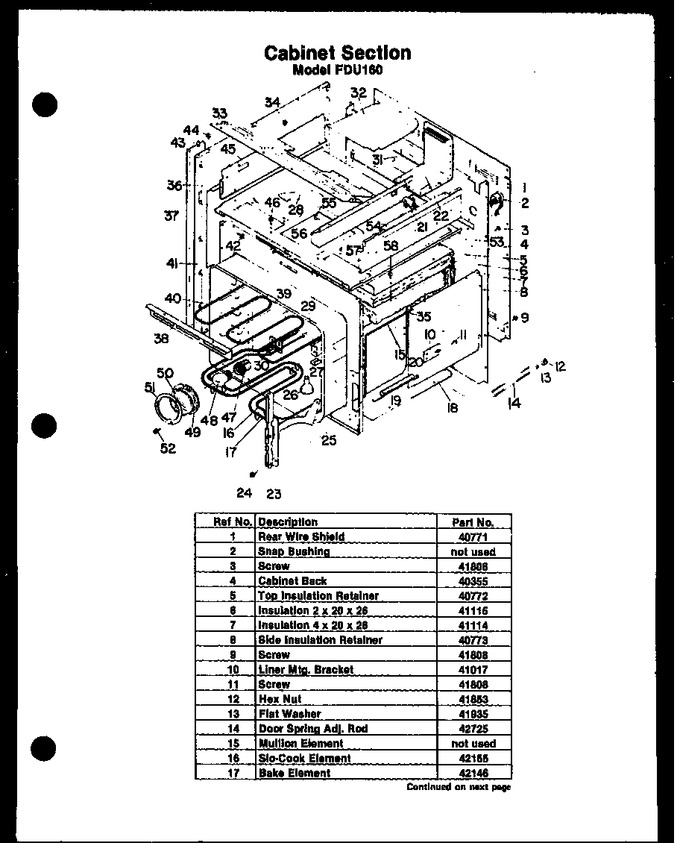

01 - Black Glass Door Assy


02 - Cabinet Section


03 - Door Latch Assy


04 - Glass-ceramic Module


05 - Grille Modu Le


06 - Mini Rail


07 - Oven Accessories


08 - Page 1


09 - Perma-coil Module


10 - Range - Back Panel


11 - Range Top Section


12 - Rotisserie


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0040771		Rear Wire Shield		Appelez-nous	-
2	Y00000000		See Note Snap Bushing		Appelez-nous	-
3	Y41808		Screw		Appelez-nous	-
4	Y0040355		Cabinet Back Loboy		Appelez-nous	-
5	Y0040772		Top Insulation Retain Pyro Th		Appelez-nous	-
6	Y0041115		Insulation 2x20x26		Appelez-nous	-
7	Y0041114		Insulation 26x4x20 Awx Hitemp		Appelez-nous	-
8	Y0040773		Side Insul Retain Pyro Th		Appelez-nous	-
9	Y41808		Screw		Appelez-nous	-
10	Y0041017		Bracket, Oven Mounting-pyro		Appelez-nous	-
11	Y41808		Screw		Appelez-nous	-
12	M0282005		Sub 97884 Nut   (Replaces: Y0041853)				$ 7.07
13	0041935		Washer 3/4x5/16x 080 E L Hoods		Appelez-nous	-
14	0042725		Spring Adjustment Rod		Appelez-nous	-
15	Y00000000		See Note Mullion Element		Appelez-nous	-
16	0042155		Slo/cook Element T.h.pyro		Appelez-nous	-
17	Y0042146		Bake Element Pyro Th		Appelez-nous	-
18	Y0040774		Bot Insul Retain Pyro Th		Appelez-nous	-
19	Y0042740		Spring, Oven Door-pyro W/o		Appelez-nous	-
20	Y00000000		See Note		Appelez-nous	-
21	0043511		5644104 W.h.		Appelez-nous	-
22	Y0040587		Flue Box W/a Pyro Th		Appelez-nous	-
23	Y0052095		Hinge Assy		Appelez-nous	-
24	WP3400882		Screw, No.8-32 X 3/16 Pph   (Replaces: Y0041768)			Immediately	$ 6.47
25	59202CG		Kit Oven Liner		Appelez-nous	-
26	Y63337		Smoke Eliminator		Appelez-nous	-
27	Y63351		Capillary Hole Cover		Appelez-nous	-
28	Y0040799		Wire Retainer Pyro Th		Appelez-nous	-
29	Y0040924		Oven Probe Brkt Pyro Th		Appelez-nous	-
30	0045382		Screw		Appelez-nous	-
31	Y0040969		Relay Mtg Plate Pyro Th		Appelez-nous	-
32	Y0040775		Door Latch Cover Pyro Th		Appelez-nous	-
33	Y0040776		Switch Shield Pyro Th		Appelez-nous	-
34	Y41808		Screw		Appelez-nous	-
35	41978		Insulation Blanket		Appelez-nous	-
36	Y0040773		Side Insul Retain Pyro Th		Appelez-nous	-
37	Y0042517		Side Trim Lt		Appelez-nous	-
37	Y0042516		Side Trim Rt		Appelez-nous	-
38	Y0040902		Broil Element Support Pyro		Appelez-nous	-
39	0040398		Chip Cover Pyro W.o.		Appelez-nous	-
40	0042145		Broil Unit For Pyro T.h. Range		Appelez-nous	-
41	40312L		Side Panel, Rt, Lt		Appelez-nous	-
42	Y41808		Screw		Appelez-nous	-
43	Y0042007		Top Spacer		Appelez-nous	-
44	Y41808		Screw		Appelez-nous	-
45	40467		Burner Box Side Left		Appelez-nous	-
46	Y41808		Screw		Appelez-nous	-
47	73028		Fastener		Appelez-nous	-
48	Y0042175		Bulb, Light		Appelez-nous	-
49	Y0041987		Gasket,oven Light		Appelez-nous	-
50	0052276		Lens, Oven Light		Appelez-nous	-
51	0040995		Lens Retainer Stainless Steel		Appelez-nous	-
52	Y41808		Screw		Appelez-nous	-
53	40478		Burner Box Bottom		Appelez-nous	-
54	0041024		Unit Support Brkt		Appelez-nous	-
55	Y41808		Screw		Appelez-nous	-
56	Y0040830		Wire Channel Du976 966		Appelez-nous	-
57	Y0040466		Burner Box Side Rt Pyro Th		Appelez-nous	-
58	Y41808		Screw		Appelez-nous	-
NI	Y0040777		Term Block Cover Pyro Th		Appelez-nous	-
NI	0042408		Vent Extension Pyro Th		Appelez-nous	-
NI	41988		Light Switch		Appelez-nous	-
NI	0040740		Lamp, Cup		Appelez-nous	-
NI	Y0040397		Bottom Door Trim Pyro Th		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
