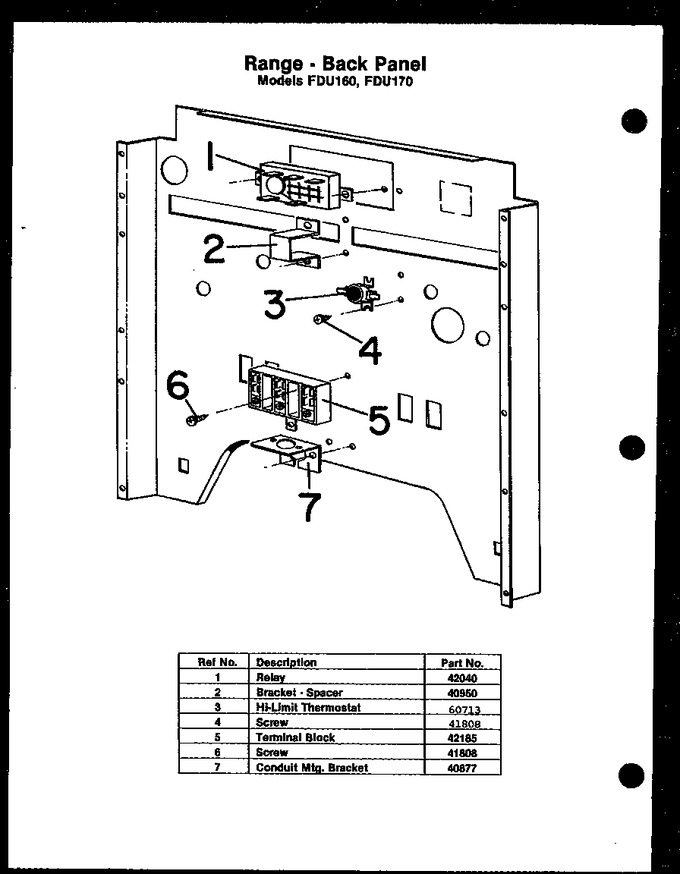

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0042040		Sub 91669, Relay		Appelez-nous	-
2	Y0040950		Spacer Brkt Pyro T.h.		Appelez-nous	-
3	60713		Hi-limit Thermostat		Appelez-nous	-
4	Y41808		Screw		Appelez-nous	-
5	0042185		Term Blk 1m-min		Appelez-nous	-
6	Y41808		Screw		Appelez-nous	-
7	0040877		Bracket Conduit Mtg Qco454		Appelez-nous	-
