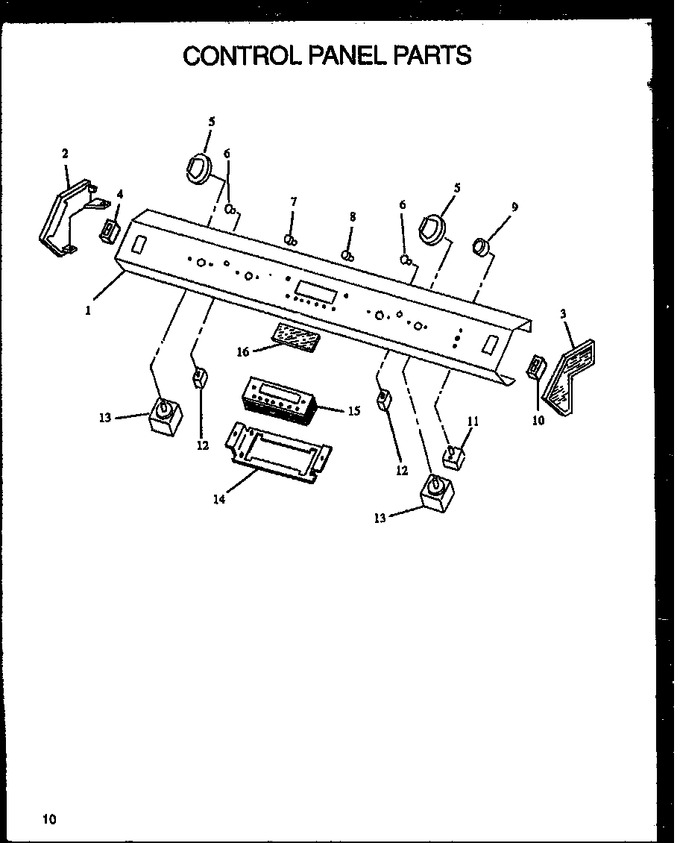

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 307983W | Panel, Control (white) |
|
- | |||||
| 2 | 308171K | End Cap, Lt K |
|
- | |||||
| 3 | 308172K | End Cap, Rt |
|
- | |||||
| 4 | 0303181 | Switch, Slo Cook, Lt.gray |
|
- | |||||
| 5 | Y0303179 | Kit,top Burner Knob(white) |
|
- | |||||
| 6 | 0303163 | Lens, Indicator Clear |
|
- | |||||
| 7 | Y0305330 | Knob, Set Button (lt Gray) |
|
- | |||||
| 8 | Y0305318 | Knob, Clock (lt Gray) |
|
- | |||||
| 9 | Y0303165 | Knob, Fan Switch (lt. Gray) |
|
- | |||||
| 10 | Y0303167 | Switch, Oven Light (gray) |
|
- | |||||
| 11 | Y0300574 | Switch, Fan |
|
- | |||||
| 12 | 0306895 | Light Indicator |
|
- | |||||
| 13 | W11121639 | Switch,inf(240p-1243) (Replaces: Y0058773) |
|
$ 149.17 | |||||
| 14 | 308085B | Bracket,erc Mount |
|
- | |||||
| 15 | Y0308480 | Control, Erc Elec. |
|
- | |||||
| 16 | Y0308107 | Glass, Clock |
|
- | |||||
| NI | Y0052031 | Screw, No.8-32 X3/8 P Trs Hd Lp |
|
- | |||||
| NI | WP3400882 | Screw, No.8-32 X 3/16 Pph (Replaces: Y0041768) |
|
Immediately | $ 6.47 |
