SELECT A DIAGRAM

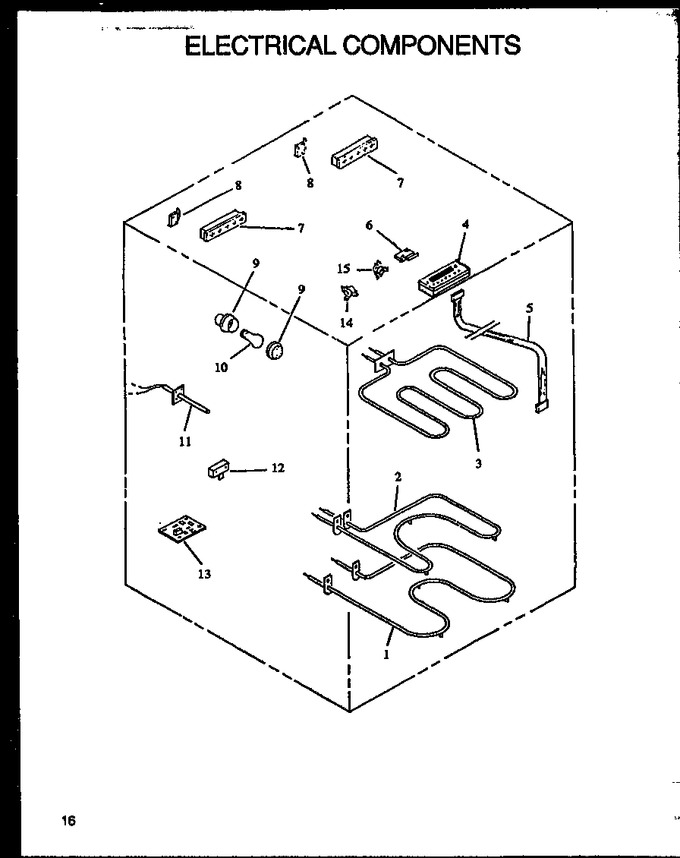

01 - Control Panel Parts


02 - Electrical Components


03 - Lower Oven Cabinet Assy


04 - Main Top And Oven Assy


05 - Oven Door Parts


06 - Storage Drawer Parts


07 - Ventilation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP77001096		Element, Bake (240v-2500w)   (Replaces: Y0300538)				$ 57.67
2	Y0300539		Element, Slo-cook		Appelez-nous	-
3	Y0060241		Element, Broil (240v-3000w)		Appelez-nous	-
4	Y0308480		Control, Erc Elec.		Appelez-nous	-
5	Y0308189		Harness, Wire (clock/pcb)		Appelez-nous	-
6	Y0065780		Switch, Clean Circuit				$ 11.77
6	Y0042052		Switch, Clean, Primary Interl		Appelez-nous	-
7	Y0042210		Plug Block Modular Top		Appelez-nous	-
8	Y0054254		Switch, Fan		Appelez-nous	-
9	WP74011278		Assy, Oven Light   (Replaces: 74011278)				$ 101.56
10	Y0042175		Bulb, Light		Appelez-nous	-
11	WPY0314907		Sensor, Temperature   (Replaces: Y0306529)				$ 201.45
12	WP8203546		Terminal Block   (Replaces: Y0306378)			Immediately	$ 27.12
13	Y0301277		Circuit Board, Erc-electric		Appelez-nous	-
14	Y0308416		Switch, Limit Cont.		Appelez-nous	-
15	Y0308417		Control, Fan		Appelez-nous	-
NI	0306381		Hex Nut No.10-32 Nickel		Appelez-nous	-
NI	WPW10245259		Strap, Ground   (Replaces: Y0306379)			Immediately	$ 31.65
NI	Y0308192		Harness, Wire (pc Brd 23``)		Appelez-nous	-
NI	Y0300662		Support		Appelez-nous	-
NI	Y0087705		Power Cord (range)		Appelez-nous	-
NI	Y0042123		Element, Contact-module Top		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
