SELECT A DIAGRAM

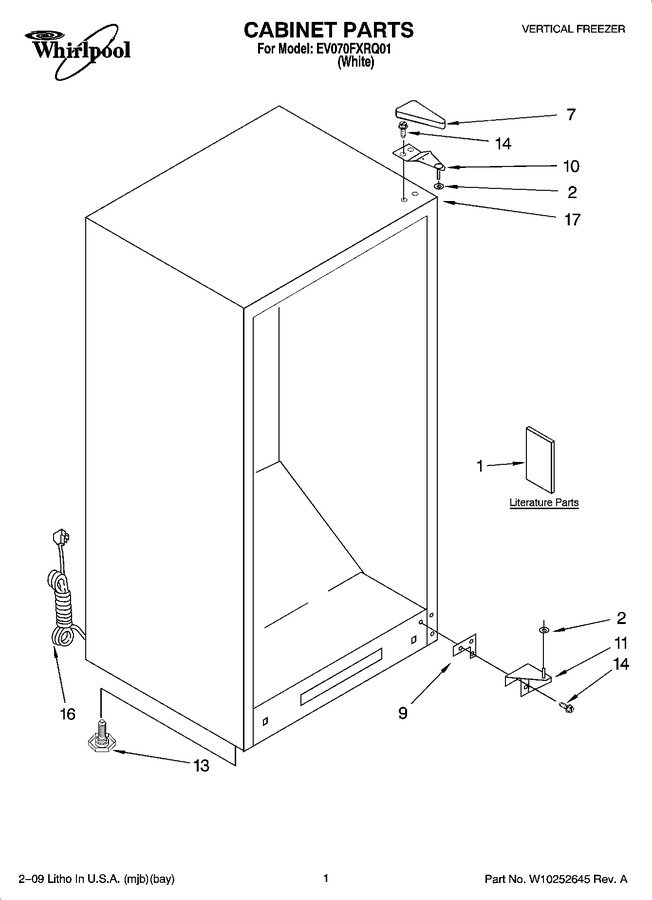

01 - Cabinet Parts


02 - Liner Parts


03 - Unit Parts


04 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8210432		Owners Manual		Appelez-nous	-
1	8210415		Energy Label/tag		Appelez-nous	-
2	W10851331		Washer, Door Spacer   (Replaces: 4390520)				$ 9.51
7	4357279		Cover, Hinge				$ 46.56
9	4390489		Shim, Bottom				$ 6.26
10	4390885		Hinge, Top		Appelez-nous	-
11	8210419		Hinge, Bottom		Appelez-nous	-
13	W11117769		Leg, Leveller(2)   (Replaces: 4390866)			Immediately	$ 16.61
14	WP8204624		Screw   (Replaces: 4356830)				$ 14.99
16	8210424		Cord, Power		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
