SELECT A DIAGRAM

01 - Cabinet Parts


02 - Liner Parts

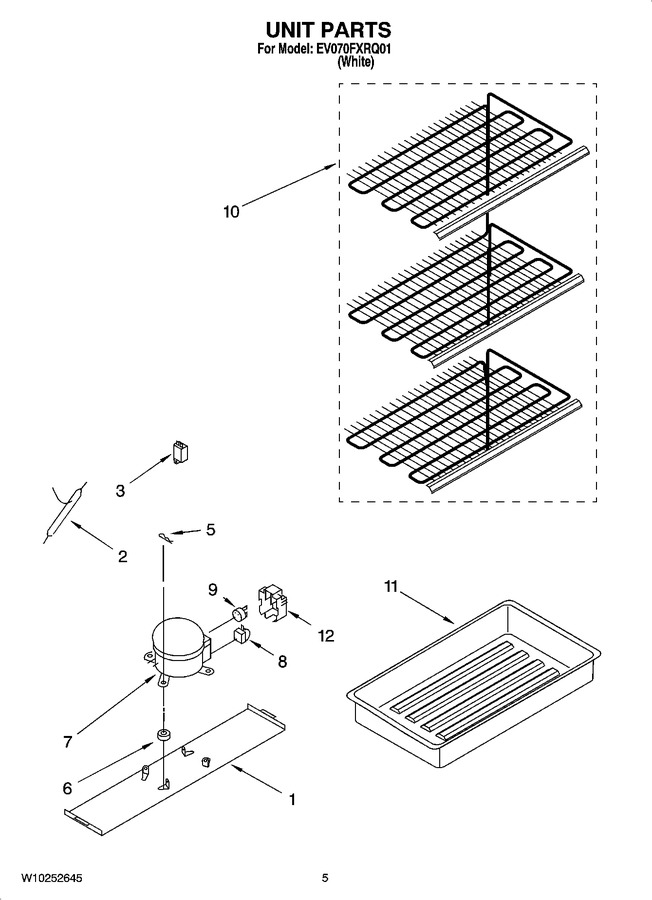

03 - Unit Parts


04 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8210422		Compressor Mounting Pan		Appelez-nous	-
2	4001		Drier   (Replaces: 4357299)			Immediately	$ 9.64
3	8210309		Capacitor		Appelez-nous	-
5	W10202610		Pin, Hitch		Appelez-nous	-
6	4356335		Grommet, Compressor		Appelez-nous	-
7	W10823815		Compressor (includes Items 2, 6, 8, 9 & 12)   (Replaces: 8210260)				$ 606.74
8	4356738		Relay				$ 53.17
9	8210241		Overload				$ 88.68
10	8210423		Evaporator Shelf Assembly (includes All 3 Shelves)		Appelez-nous	-
11	8210421		Pan, Drain		Appelez-nous	-
12	8210242		Cover		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
