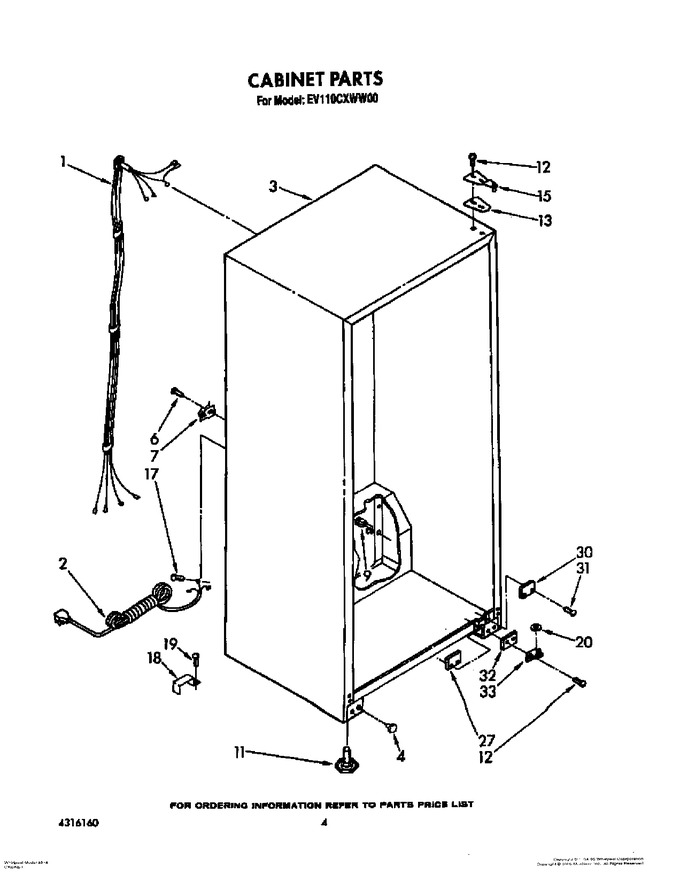

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	941518		Cabinet Wiring		Appelez-nous	-
2	850626		Cord, Service		Appelez-nous	-
3	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
4	941416		Hole Plug (white)		Appelez-nous	-
6	WP489478		Screw, 8 X 1/2   (Replaces: 489242)				$ 6.98
7	939009		Clamp		Appelez-nous	-
9	544108		Bushing, Strain Relief		Appelez-nous	-
11	946209		Repair				$ 28.65
11	W11117769		Leveler (4)   (Replaces: 939005)			Immediately	$ 16.61
12	WP999367		Screw, 10-32 X 23/16   (Replaces: 489105)				$ 7.07
13	1100509		Shim, Top Hinge		Appelez-nous	-
15	1100513		Shim, Hinge Top		Appelez-nous	-
17	488474		Screw, 8-32 X 3/8		Appelez-nous	-
18	653035		Clip, Plug		Appelez-nous	-
19	486899		Screw, 6-32 X 1/2		Appelez-nous	-
20	WP487576		1/16 Repair   (Replaces: 487576)			Immediately	$ 8.89
20	WP487802		Washer (7/64 Nylon)   (Replaces: 487802)			Immediately	$ 7.12
20	WP487802		7/32 Repair   (Replaces: 488184)			Immediately	$ 7.12
27	935743		Tap Plate		Appelez-nous	-
30	935707		Rail Cover, Tube Entry (white)		Appelez-nous	-
31	488895		Screw		Appelez-nous	-
32	935737		Shim, Bottom Hinge		Appelez-nous	-
33	944776		Butt, Hinge (bottom)		Appelez-nous	-
