View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Door, Optional
03 - Cabinet
04 - Trivet

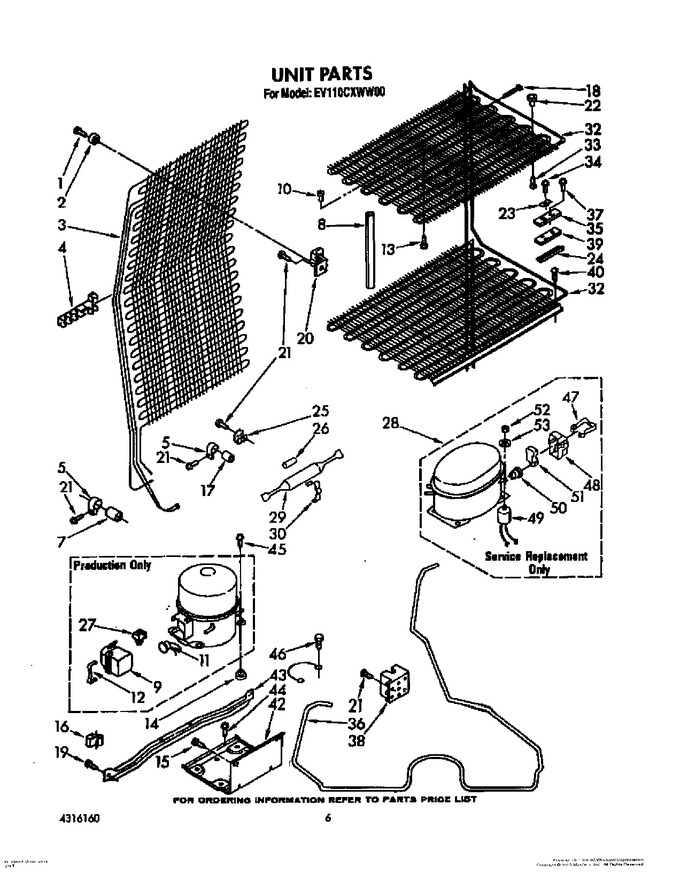

05 - Unit
06 - Liner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 487888 | Screw, 8 X 7/8 (2) |
|
- | |||||
| 2 | 204349 | Bumper (2) |
|
- | |||||
| 3 | 1128115 | Condenser & Precooler Assembly |
|
- | |||||
| 4 | 942739 | Tube Clip (2) |
|
- | |||||
| 5 | 510716 | Tube Clamp |
|
- | |||||
| 7 | 1108064 | Dampener |
|
- | |||||
| 8 | 941447 | Cover, Connecting Lines (10.0 Inches) |
|
- | |||||
| 8 | 941385 | Cover, Connecting Lines (9.25 Inches) |
|
- | |||||
| 8 | 941384 | Cover, Connecting Lines (11.5 Inches) |
|
- | |||||
| 9 | 1108115 | Cover, Terminal (used W/original Compressor) |
|
- | |||||
| 10 | 1103816 | Spacer |
|
$ 0.12 | |||||
| 11 | 941605 | Overload (used W/original Compressor) |
|
- | |||||
| 12 | 938384 | Strap, Cover (used W/original Compressor) |
|
- | |||||
| 13 | 488748 | Screw |
|
- | |||||
| 14 | 876811 | Grommet (4) (Replaces: 1100826) |
|
$ 6.68 | |||||
| 15 | 489340 | Screw, 5/16-18 X 5/8 (2) (Replaces: 488683) |
|
- | |||||
| 16 | W10812038 | Clip, Wire (Replaces: 939054) |
|
- | |||||
| 17 | 945593 | Dampener |
|
- | |||||
| 18 | 851095 | Strap (2) |
|
- | |||||
| 20 | 1105574 | Condenser Bracket (2) |
|
- | |||||
| 21 | WP489478 | Screw, 8 X 1/2 (Replaces: 489242) |
|
$ 6.98 | |||||
| 22 | 941842 | Spacer (3) |
|
- | |||||
| 23 | 510614 | Header Clamp Plate (2) |
|
- | |||||
| 24 | 510754 | Clip, Thermostat |
|
- | |||||
| 25 | 4386951 | Clip, Condenser Mounting (2) (Replaces: 942852) |
|
- | |||||
| 26 | 510446 | Restrictor Sleeve |
|
- | |||||
| 27 | 938385 | Relay (used W/original Compressor) |
|
- | |||||
| 28 | 482980 | Compressor (includes Items 47, 48, 49, 50, 51, 52, & 53 (also Order 876765 Tube Kit) |
|
- | |||||
| 29 | W10843121 | Drier (Replaces: 943309) |
|
Immediately | $ 47.31 | ||||
| 30 | 1127590 | Clamp, Dryer |
|
- | |||||
| 32 | 1105584 | Evaporator (shelf, 2nd & 3rd) |
|
- | |||||
| 32 | 1105587 | Evaporator (shelf, Bottom) |
|
- | |||||
| 32 | 1105581 | Evaporator (shelf, Top) |
|
- | |||||
| 33 | WP488163 | Screw, 8 X 1a (Replaces: 488163) |
|
$ 6.79 | |||||
| 34 | 488054 | Screw, 8-32 X 7/16 |
|
- | |||||
| 35 | 1105573 | Shim, Thermostat Plate |
|
- | |||||
| 36 | 1105590 | Heat Exchanger |
|
- | |||||
| 37 | 488436 | Screw, 8-32 X 5/8 |
|
- | |||||
| 38 | 937068 | Box, Junction |
|
- | |||||
| 39 | 1105572 | Plate, Thermostat |
|
- | |||||
| 40 | WP308685 | Screw, 10-16 X 1/2 (6) (Replaces: 487942) |
|
Immediately | $ 7.08 | ||||
| 42 | 942860 | Plate, Unit Mounting |
|
- | |||||
| 43 | 945449 | Rail, Unit Mounting |
|
- | |||||
| 44 | 489340 | Screw (Replaces: 488683) |
|
- | |||||
| 45 | 876811 | Screw, 1/4-28 X 1 (4) (Replaces: 489116) |
|
$ 6.68 | |||||
| 46 | 303776 | Screw, 8-32 X .312 (Replaces: 488879) |
|
- | |||||
| 47 | 938384 | Strap (used W/service Compressor) |
|
- | |||||
| 48 | 1105015 | Cover, Terminal (used On Service Compressor) |
|
- | |||||
| 49 | 482996 | Capacitor (used W/service Compressor) |
|
- | |||||
| 50 | 1100807 | Overload (used W/service Compressor) |
|
- | |||||
| 51 | 1100806 | Relay (used W/service Compressor) |
|
- | |||||
| 52 | 489142 | Nut |
|
- | |||||
| 53 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 82.22 | ||||
| 53 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 115.28 | ||||
| 53 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 19.48 | |||||
| 53 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 53 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 53 | 978030 | Valve, Access (3/4``) |
|
$ 117.64 | |||||
| 53 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 94.73 | ||||
| 53 | 489143 | Washer |
|
- |
