SELECT A DIAGRAM

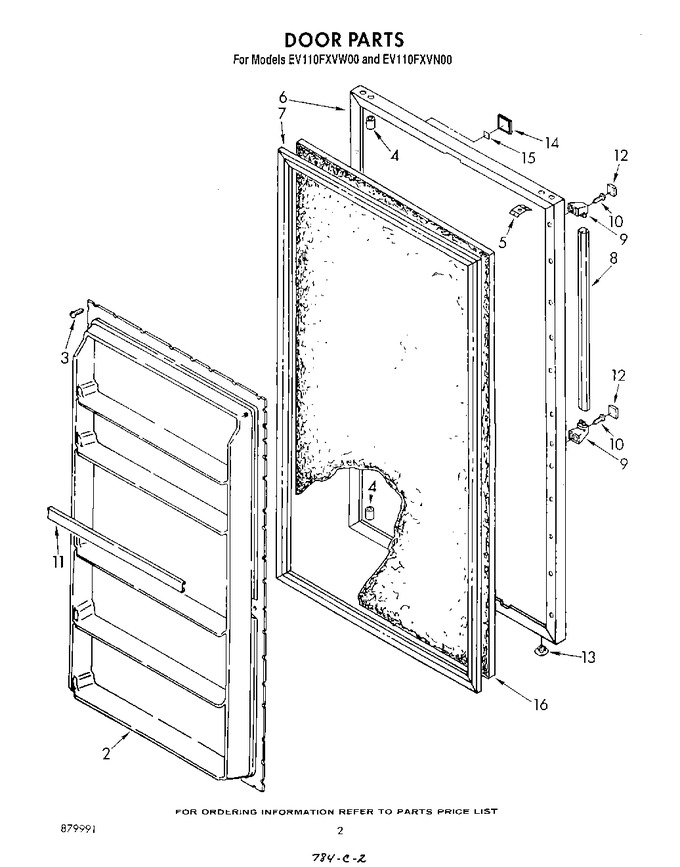

02 - Door , Lit/optional


03 - Cabinet


04 - Shelf


05 - Unit


06 - Liner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	1104120		Panel, Interior		Appelez-nous	-
3	WP489069		Screw, 8 X 1/2   (Replaces: 489101)			Immediately	$ 7.07
3	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 6.90
4	509929		Cap, Hinge Sleeve (2)		Appelez-nous	-
5	WP939101		Anchor, Screw (2)   (Replaces: 939101)				$ 6.75
6	1114853		Door, Exterior (almond (also Order Item 16))		Appelez-nous	-
6	1100729		Door, Exterior (white)		Appelez-nous	-
7	1114819		Gasket, Magnetic		Appelez-nous	-
8	1104123		Handle, Center		Appelez-nous	-
9	1106767		End, Handle (2)		Appelez-nous	-
10	488987		Screw, 8-15 X 1-5/8		Appelez-nous	-
11	1114847		Trim, Door Shelf (bottom (3))		Appelez-nous	-
11	1114846		Trim, Door Shelf (top (1))		Appelez-nous	-
12	1110070		Cover (2)		Appelez-nous	-
13	989197		Hole Plug (almond)		Appelez-nous	-
13	534927		Hole Plug (white)		Appelez-nous	-
14	942669		Nameplate		Appelez-nous	-
15	991259		Tape Strip		Appelez-nous	-
16	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
16	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
16	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
16	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
16	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
16	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
16	515393		Transformer, Stepdown (230-115 Volt)		Appelez-nous	-
16	833938		Kit, Terminal Connector				$ 7.26
16	212643		Sealer, Gum (22 Pcs. 3/16`` X 7``)			Immediately	$ 73.92
16	876370		Kit, Insulation (5 Pcs. 3`` X 24`` X 48)   (Replaces: 479976)				$ 208.40
16	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
16	606755		Bag, Insulation (36-5/8`` X 46``)				$ 70.61
16	WP279368		Cement, Insulation (1 Oz.)   (Replaces: 797403)			Immediately	$ 99.82
16	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 156.56
16	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
	350930		Xenamel, White (13 Oz. Spray Can)   (Replaces: 799343)			Immediately	$ 34.39
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 799339)			Immediately	$ 51.34
	350942		Xprimer, White (13 Oz. Spray Can)   (Replaces: 206922)				$ 80.69
	206925		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 46.30
	LIT879991		Part List		Appelez-nous	-
	LIT941542		Service & Wiring Sheet		Appelez-nous	-
	LIT656493		How To Freeze Booklet		Appelez-nous	-
	LIT1114852		Energy Label		Appelez-nous	-
	LIT114850		Guide, Use & Care		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
