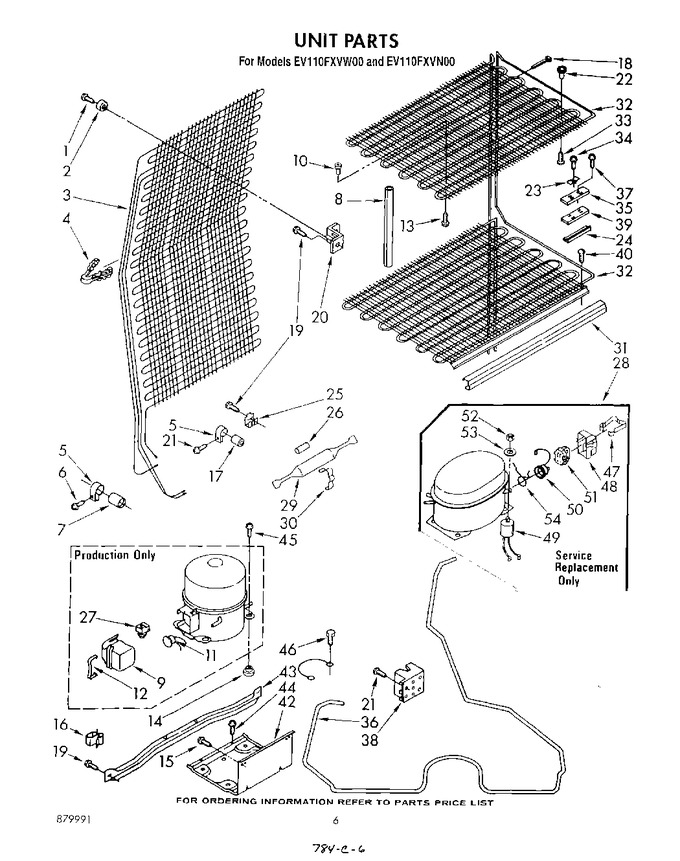

05 - Unit


06 - Liner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	487888		Screw, 8 X 7/8 (2)		Appelez-nous	-
2	204349		Bumper (2)		Appelez-nous	-
3	1105576		Condenser & Precooler Assembly		Appelez-nous	-
4	942739		Tube Clip (2)		Appelez-nous	-
5	510716		Tube Clamp		Appelez-nous	-
6	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488197)				$ 19.04
7	1108064		Dampener		Appelez-nous	-
8	941385		Cover, Connecting Lines (9.25 Inches)		Appelez-nous	-
8	941384		Cover, Connecting Lines (11.5 Inches)		Appelez-nous	-
8	941447		Cover, Connecting Lines (10.0 Inches)		Appelez-nous	-
9	1108115		Cover, Terminal		Appelez-nous	-
10	1103816		Spacer				$ 0.12
11	941605		Overload		Appelez-nous	-
12	938384		Strap, Cover		Appelez-nous	-
13	488748		Screw		Appelez-nous	-
14	876811		Grommet (4)   (Replaces: 1100826)				$ 6.68
15	489340		Screw, 5/16-18 X 5/8 (2)   (Replaces: 488683)		Appelez-nous	-
16	W10812038		Clip, Wire   (Replaces: 939054)		Appelez-nous	-
17	945593		Dampener		Appelez-nous	-
18	851095		Strap (2)		Appelez-nous	-
19	WP489069		Screw, 8 X 1/2a   (Replaces: 488480)			Immediately	$ 7.07
20	1105574		Condenser Bracket (2)		Appelez-nous	-
21	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 12.62
22	941842		Spacer (3)		Appelez-nous	-
23	510614		Header Clamp Plate (2)		Appelez-nous	-
24	510754		Clip, Thermostat		Appelez-nous	-
25	4386951		Clip, Condenser Mounting (2)   (Replaces: 942852)		Appelez-nous	-
26	510446		Restrictor Sleeve		Appelez-nous	-
27	938385		Relay		Appelez-nous	-
28	482980		Compressor (includes Items 47, 48, 49, 50, 51, 52, 53 & 54) (also Order 876765 Tube Kit)		Appelez-nous	-
29	W10843121		Drier   (Replaces: 943309)			Immediately	$ 47.31
30	547637		Clamp		Appelez-nous	-
31	1114848		Trim, Shelf (3)		Appelez-nous	-
32	1105587		Evaporator (shelf, Bottom)		Appelez-nous	-
32	1105584		Evaporator (shelf, 2nd & 3rd)		Appelez-nous	-
32	1105581		Evaporator (shelf, Top)		Appelez-nous	-
33	WP488163		Screw, 8 X 1a   (Replaces: 488163)				$ 6.79
34	488054		Screw, 8-32 X 7/16		Appelez-nous	-
35	1105573		Shim, Thermostat Plate		Appelez-nous	-
36	1105590		Heat Exchanger		Appelez-nous	-
37	488436		Screw, 8-32 X 5/8		Appelez-nous	-
38	937068		Box, Junction		Appelez-nous	-
39	1105572		Plate, Thermostat		Appelez-nous	-
40	489036		Screw (repair)		Appelez-nous	-
40	WP308685		Screw, 10-16 X 1/2 (6)   (Replaces: 487942)			Immediately	$ 7.08
42	942860		Plate, Unit Mounting		Appelez-nous	-
43	945449		Rail, Unit Mounting		Appelez-nous	-
44	WP965173		Screw   (Replaces: 487248)			Immediately	$ 9.65
45	876811		Screw, 1/4-28 X 1 (4)   (Replaces: 489116)				$ 6.68
46	303776		Screw, 8-32 X .312   (Replaces: 488879)		Appelez-nous	-
47	938384		Strap		Appelez-nous	-
48	1105015		Cover, Terminal		Appelez-nous	-
49	482996		Capacitor		Appelez-nous	-
50	483036		Overload		Appelez-nous	-
51	WP2262181		Relay   (Replaces: 1108143)				$ 110.39
52	489142		Nut		Appelez-nous	-
53	489143		Washer		Appelez-nous	-
54	876764		Valve, Access(3/16``)			Immediately	$ 82.22
54	1114190		Overload Spring		Appelez-nous	-
54	978026		Valve, Access (5/16``)			Immediately	$ 115.28
54	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 19.48
54	978028		Valve, Access (1/2)		Appelez-nous	-
54	978029		Valve Access (5/8``)				$ 93.85
54	978030		Valve, Access (3/4``)				$ 117.64
54	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 94.73
