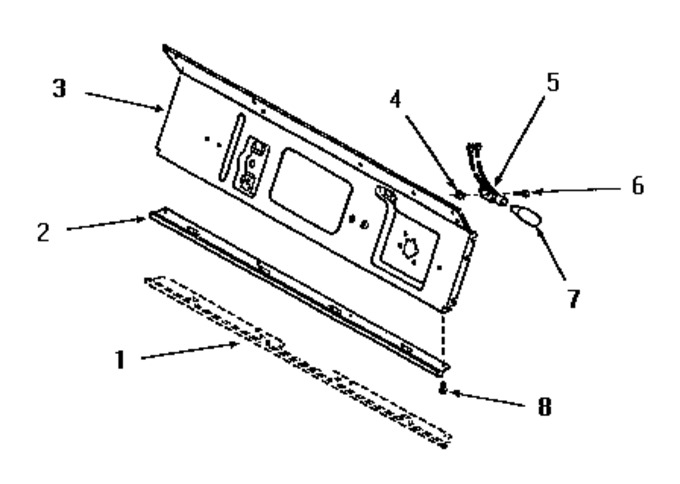

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00000000		See Note Panel Support Bracket		Appelez-nous	-
2	Y52929		Panel Trim		Appelez-nous	-
3	53861		Panel Support Plate		Appelez-nous	-
4	22378		Nut		Appelez-nous	-
5	Y22368		Bulb Receptacle		Appelez-nous	-
6	20268		Screw,8-32 X 1/4 Rd Hd		Appelez-nous	-
7	21608		Bulb				$ 111.49
8	WP3177991		Screw, 8b-18 X 1/4 He   (Replaces: 23222)			Immediately	$ 6.47

    View Diagram in Separate Window       Print Part List
