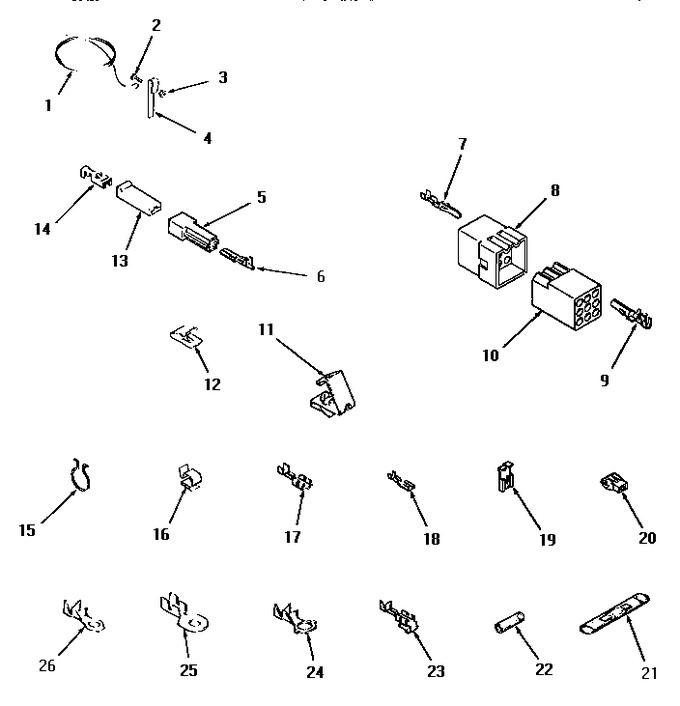

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y21429		Ground Wire		Appelez-nous	-
2	21431		Round Head Screw		Appelez-nous	-
3	Y20276		Nut		Appelez-nous	-
4	21430		Strap,ground		Appelez-nous	-
5	90788		Housing,tab		Appelez-nous	-
6	00133		Terminal,tab-1/4 Male		Appelez-nous	-
7	Y00127		Terminal,pin-1/8 Male		Appelez-nous	-
8	54522		Plug,nylon		Appelez-nous	-
9	Y00128		Terminal,pin-1/8 Femal		Appelez-nous	-
10	54523		Receptacle,12 Circuit-		Appelez-nous	-
11	00158		Ground Clip		Appelez-nous	-
12	21312		Cable Clip		Appelez-nous	-
13	90789		Connector		Appelez-nous	-
14	Y00115		Terminal,spade-1/4 Fem		Appelez-nous	-
15	51291		Clip,wire		Appelez-nous	-
16	21036		Clip,cable				$ 62.49
17	Y00119		Spade Terminal(18 Gauge)		Appelez-nous	-
18	00112		Terminal,spade-3/16 Fe		Appelez-nous	-
19	Y00120		Terminal,flag-1/4 Fema		Appelez-nous	-
20	70210		Insulator,blue		Appelez-nous	-
21	21091		Connector Two 1/4 Inch Male		Appelez-nous	-
22	Y21365		Insulator Sleeve		Appelez-nous	-
23	Y00114		Terminal,spade-1/4 Fem		Appelez-nous	-
24	Y00113		Terminal,ring-1/4 Stud		Appelez-nous	-
25	Y00111		Terminal,ring-10 Stud		Appelez-nous	-
26	00110		Terminal,ring-10 Stud				$ 9.23
NI	20680		18 Gauge Wire		Appelez-nous	-
NI	20679		Wire, 12 Gauge		Appelez-nous	-
