SELECT A DIAGRAM

01 - Cabinet Top


02 - Clothes Drum


03 - Control Hood


04 - Control Panel And Controls


05 - Door Release


06 - Exhaust Fan


07 - Front Frame And Air Shroud


08 - Heater Box


09 - Loading Door


10 - Motor, Idler And Belt


11 - Panel Support Plate And Fluorescent Tube


12 - Panels


13 - Rear Frame And Frame Base


14 - Wire And Terminals

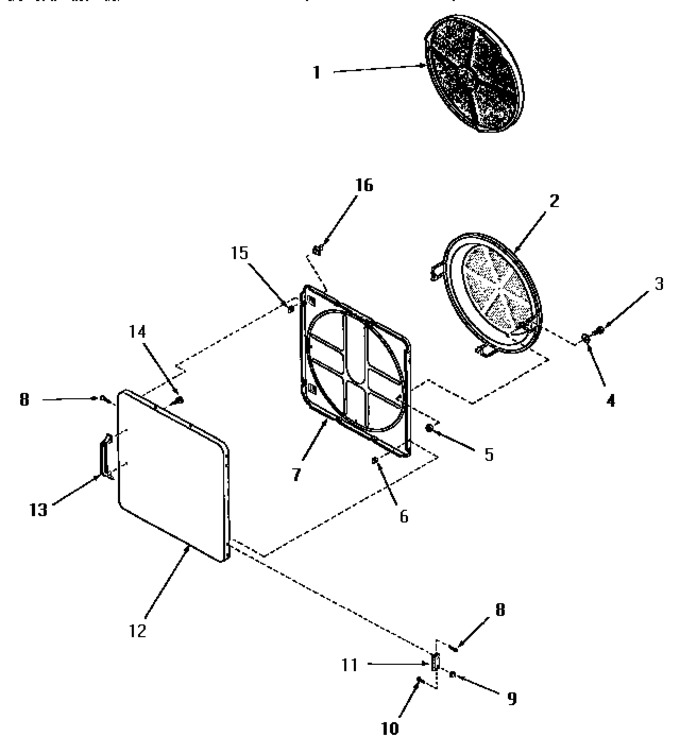

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	53002		No Longer Available		Appelez-nous	-
2	54731		Assy,grill&support-pur		Appelez-nous	-
3	02422		Screw,1/4-20 X 1/2 Hex		Appelez-nous	-
4	Q6275		Washer		Appelez-nous	-
5	WPW10139757		Nut, Hex Jam 1/4-20l   (Replaces: 52566)				$ 7.16
6	52865		Speed Nut		Appelez-nous	-
7	54665		Inner Door Panel		Appelez-nous	-
8	Sub. To D512973		Screw, 8b-16x5/8 Tap   (Replaces: 52864)		Appelez-nous	-
9	Sub. To 807429P		Nut K   (Replaces: 51236)		Appelez-nous	-
10	22649		Screw,8-32 X 13/32 Fl		Appelez-nous	-
11	70014		Hinge (comml. Part)		Appelez-nous	-
12	52197H		Outer Door Panel, Harvest Gold		Appelez-nous	-
12	52197W		Outer Door Panel, White		Appelez-nous	-
12	52197C		Outer Door Panel, Coppertone		Appelez-nous	-
12	52197A		Outer Door Panel, Avocado		Appelez-nous	-
14	52150		Screw, Thermostat		Appelez-nous	-
15	52865		Speed Nut		Appelez-nous	-
16	LA-1003		Strike, Door (metal)   (Replaces: 54661)			Immediately	$ 24.51

    View Diagram in Separate Window       Print Part List
