01 - Cabinet Top


02 - Clothes Drum


03 - Control Hood


04 - Control Panel And Controls


05 - Door Release


06 - Exhaust Fan


07 - Front Frame And Air Shroud


08 - Heater Box


09 - Loading Door

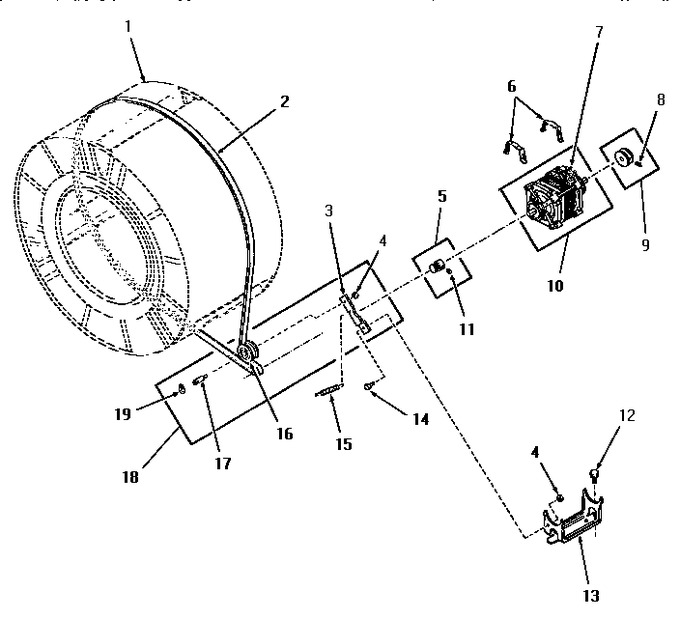

10 - Motor, Idler And Belt


11 - Panel Support Plate And Fluorescent Tube


12 - Panels


13 - Rear Frame And Frame Base


14 - Wire And Terminals


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00000000		See Note Clothes Drum		Appelez-nous	-
2	52556		Belt		Appelez-nous	-
3	54410		Lever,idler		Appelez-nous	-
4	WPW10139757		Nut, Hex Jam 1/4-20l   (Replaces: 52566)				$ 7.16
5	52593		Assy,motor Pulley		Appelez-nous	-
6	51789		Replaced By 58047		Appelez-nous	-
7	Y00000000		See Note Motor Switch, Westinghouse -- (not Replaceable)		Appelez-nous	-
7	53226		Switch,motor		Appelez-nous	-
7	53249		Switch		Appelez-nous	-
8	02771		Screw,1/4-20x3/8 Hex S		Appelez-nous	-
9	53522		Pulley,motor		Appelez-nous	-
10	52697		Motor		Appelez-nous	-
11	52906		Setscrew		Appelez-nous	-
12	23928		Cap Screw And Lockwasher		Appelez-nous	-
13	51824		Mount,motor		Appelez-nous	-
14	52567		Bolt,shoulder		Appelez-nous	-
15	52323		Spring		Appelez-nous	-
16	WPY54414		Assembly, Wheel & Bearing   (Replaces: Y54414)			Immediately	$ 19.11
17	54411		Shaft,idler Lever		Appelez-nous	-
18	54415P		Lever,idler   (Replaces: 54415)		Appelez-nous	-
19	WP23748		Ring, Retaining   (Replaces: 23748)			Immediately	$ 10.75

    View Diagram in Separate Window       Print Part List
