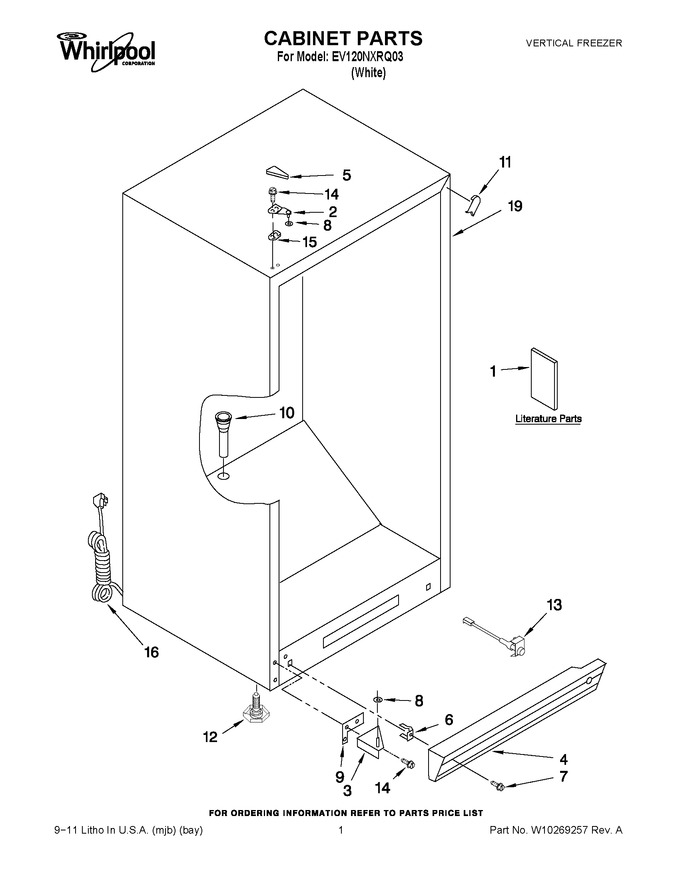

01 - Cabinet Parts


02 - Liner Parts


03 - Door Parts


04 - Unit Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8210387		Energy Guide/tag		Appelez-nous	-
1	8210432		Owners Manual		Appelez-nous	-
2	2-81016-105		Hinge, Top   (Replaces: 8210222)				$ 37.06
3	8210238		Hinge, Bottom				$ 38.28
4	4357271		Grille (includes 6 & 7)		Appelez-nous	-
5	4357279		Cover, Hinge (white)				$ 46.56
6	1-80247-101		Clip, Grille   (Replaces: 4356803)			Immediately	$ 9.86
7	WP489478		Screw   (Replaces: 4357243)				$ 6.98
8	W10851331		Washer   (Replaces: 4390520)				$ 9.51
9	4390489		Shim, Bottom				$ 6.26
10	W10164544		Grommet, Drain		Appelez-nous	-
11	8210227		Filler, Corner (white)		Appelez-nous	-
12	W11117769		Leg, Leveller   (Replaces: 4390866)			Immediately	$ 16.61
13	4390905		Power Light Assembly		Appelez-nous	-
14	WP8204624		Screw   (Replaces: 4356830)				$ 14.99
15	4390489		Shim, Hinge				$ 6.26
16	8210403		Cord, Power		Appelez-nous	-
19	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
