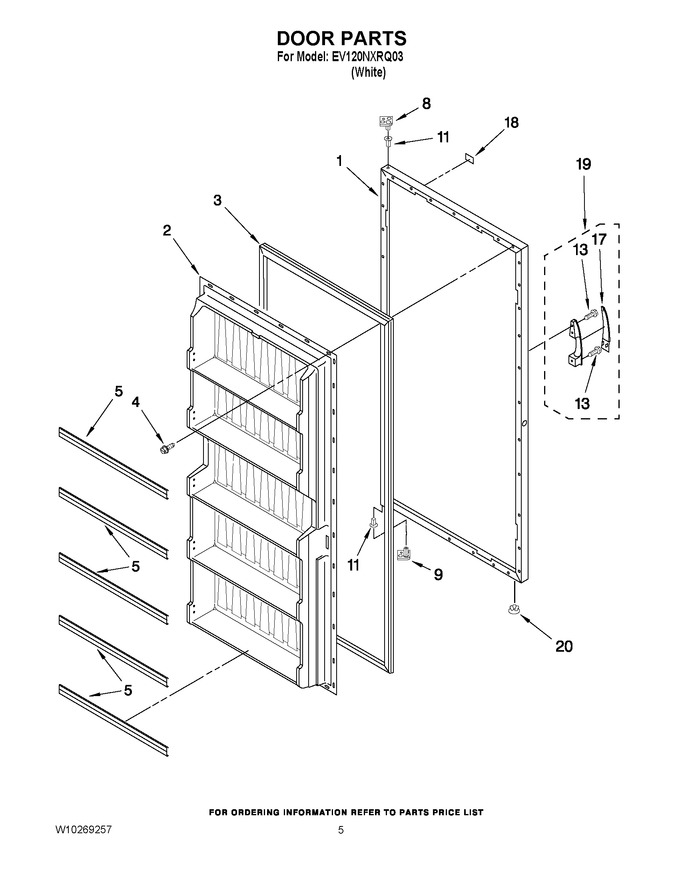

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8210365 | Exterior Door (white (includes Insulation)) |
|
- | |||||
| 2 | 8210393 | Panel, Interior |
|
- | |||||
| 3 | 4357136 | Gasket (white) |
|
$ 173.12 | |||||
| 4 | 4390598 | Screw Kit (quantity 50) (Replaces: 4357290) |
|
$ 18.89 | |||||
| 5 | 4390606 | Trim, Shelf (5) |
|
- | |||||
| 8 | 8210401 | Stop, Top Door (white) |
|
- | |||||
| 9 | 8210400 | Stop, Bottom Door (natural) |
|
- | |||||
| 11 | 4390731 | Bushing |
|
$ 19.69 | |||||
| 13 | WP489491 | Screw (Replaces: 4390669) |
|
$ 6.26 | |||||
| 17 | 4390668 | Trim, Handle |
|
- | |||||
| 18 | WP2213265 | Nameplate (white) (Replaces: 2255121) |
|
Immediately | $ 79.87 | ||||
| 19 | 4390667 | Handle Kit (white) |
|
- | |||||
| 20 | 3-24898-007 | Vent Plug (Replaces: 4357067) |
|
$ 9.72 |
