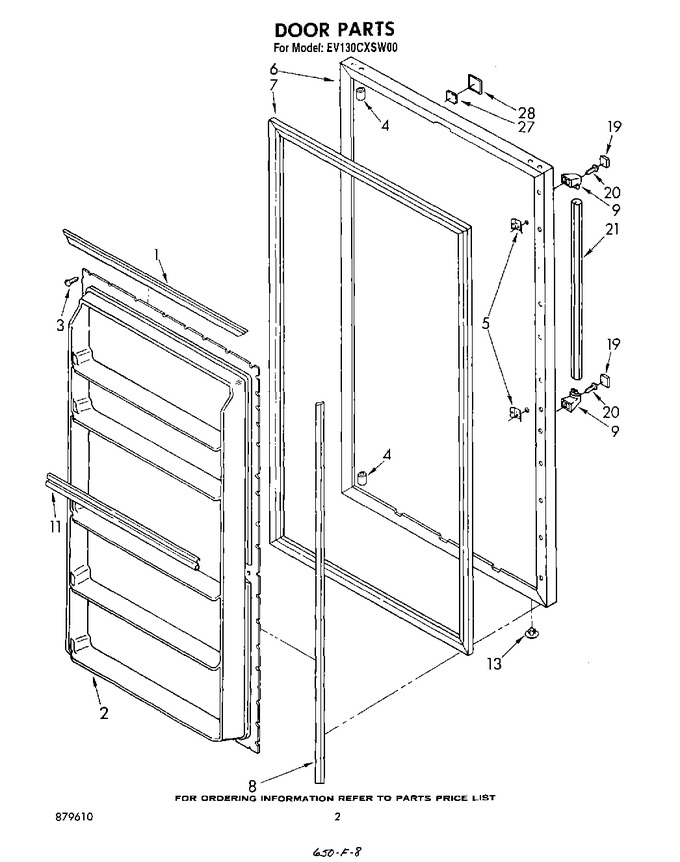

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	935759		Retainer, Gasket (2)		Appelez-nous	-
2	1104140		Panel, Interior		Appelez-nous	-
3	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 7.07
3	WP489069		Screw, 7 X 1/2 (34)   (Replaces: 489101)			Immediately	$ 7.07
4	509929		Cap, Hinge Sleeve (2)		Appelez-nous	-
5	WP939101		Screw, Anchor   (Replaces: 939101)				$ 6.75
6	1104139		Door, Exterior (almond)		Appelez-nous	-
6	1104138		Door, Exterior (white)		Appelez-nous	-
7	1104141		Gasket, Magnetic		Appelez-nous	-
8	941841		Retainer, Gasket (side) (2)		Appelez-nous	-
9	1104124		End, Handle (2)		Appelez-nous	-
11	940164		Trim, Door Shelf (4)		Appelez-nous	-
13	534927		Hole Plug (white)		Appelez-nous	-
19	1104125		Cover, Handle End		Appelez-nous	-
20	488987		Screw, 8-15 X 1-5/8		Appelez-nous	-
21	1104123		Handle, Center		Appelez-nous	-
27	991259		Tape Strip		Appelez-nous	-
28	799832		Kit, Porcelain Repair		Appelez-nous	-
28	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 106.15
28	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
28	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
28	945119		Nameplate		Appelez-nous	-
28	833938		Kit, Terminal Connector				$ 7.26
28	212643		Sealer, Gum (22 Pcs. 3/16`` X 7``)			Immediately	$ 73.92
28	876370		Kit, Insulation (5 Pcs. 3`` X 24`` X 48)   (Replaces: 479976)				$ 208.40
28	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
28	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
28	606755		Bag, Insulation (36-5/8`` X 46``)				$ 70.61
28	WP279368		Cement, Insulation (1 Oz.)   (Replaces: 797403)			Immediately	$ 99.82
28	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
28	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 156.56
28	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
28	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
28	515393		Transformer, Stepdown (230-115 Volt)		Appelez-nous	-
	350930		Xenamel, White (12 Oz. Spray Can)   (Replaces: 799343)			Immediately	$ 34.39
	LIT1104145		Energy Label		Appelez-nous	-
	LIT1104143		Use & Care Guide		Appelez-nous	-
	350942		Xprimer, White (12 Oz. Spray Can)   (Replaces: 206922)				$ 80.69
	206925		Xleveler, Enamel (12 Oz. Spray Can)		Appelez-nous	-
	LIT879610		Parts List		Appelez-nous	-
	285006		Enamel, Black (12 Oz. Spray Can)   (Replaces: 799339)			Immediately	$ 51.34
	LIT656493		How To Freeze Booklet		Appelez-nous	-
	LIT946562		Service & Wirirng Sheet		Appelez-nous	-
