Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N/A Liner (not A Serviceable Part) Appelez-nous -
2 981990 Bracket & Switch Assembly Appelez-nous -
6 940144 Stud, Shelf (6) Appelez-nous -
7 940143 Stud, Shelf (2) Appelez-nous -
8 940142 Stud, Shelf (4) Appelez-nous -
11 934607 Cap, Drain Ferrule Appelez-nous -
12 942768 Fitting, Drain Appelez-nous -
14 VF3 Thermostat   (Replaces: 941758) Special Order $ 38.40

15 934927 Escutcheon, Thermostat Appelez-nous -
16 W11693756 Screw, 8-32 X 5/8   (Replaces: 488687) In-Stock Immediately $ 12.65

19 981853 Control Knob Appelez-nous -
23 WP965173 Screw, 8-15 X 3/8a   (Replaces: 487584) In-Stock Immediately $ 9.65

27 941776 Tube Entry Cover (bottom) Appelez-nous -
28 W11693756 Screw, 8-15 X 5/8 (4)   (Replaces: 487042) In-Stock Immediately $ 12.65

29 940169 Shield, Liner Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

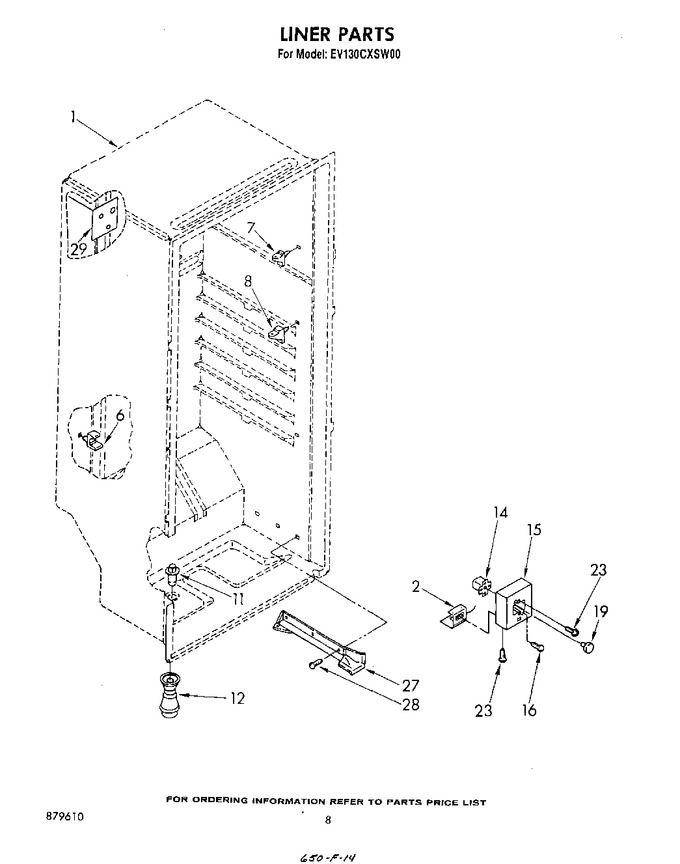

Diagram for EV130CXSW00
